GSPM™ Table

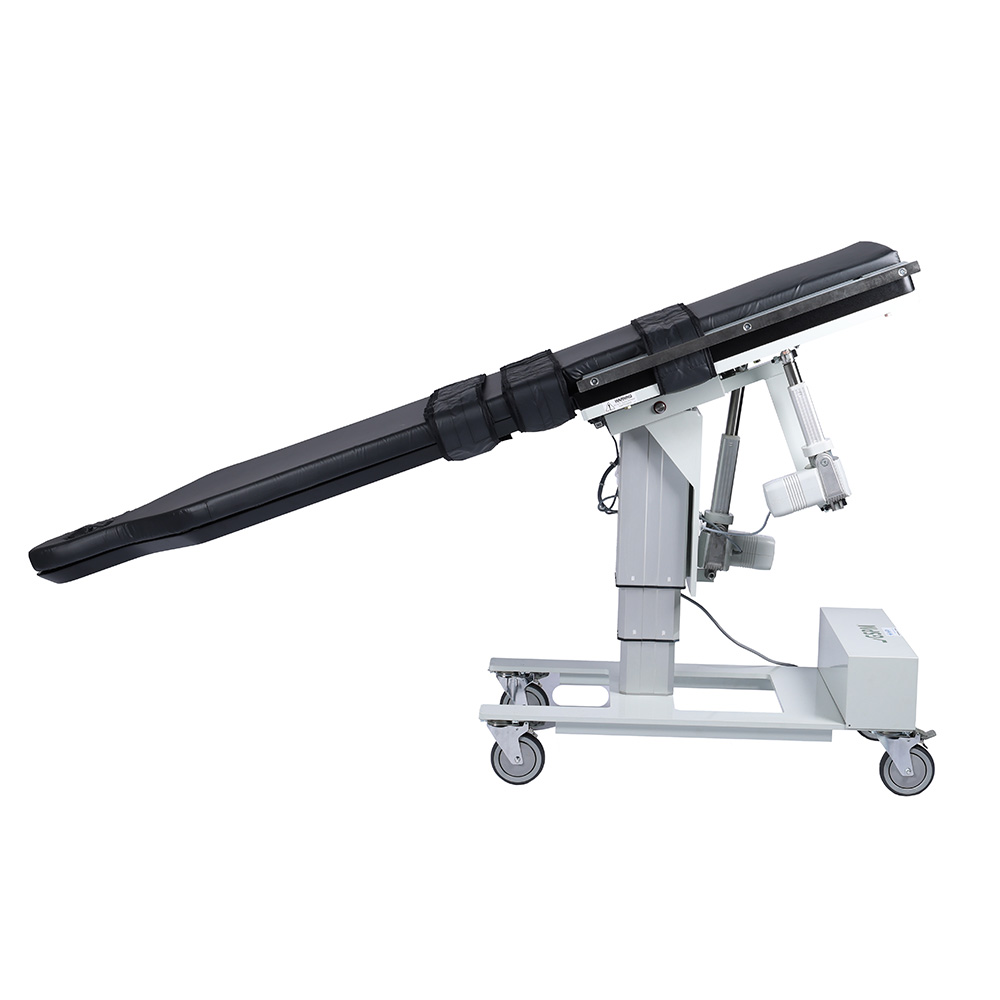

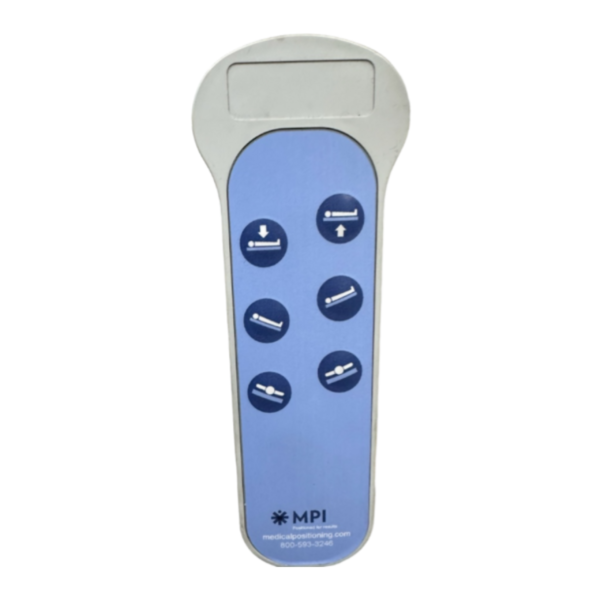

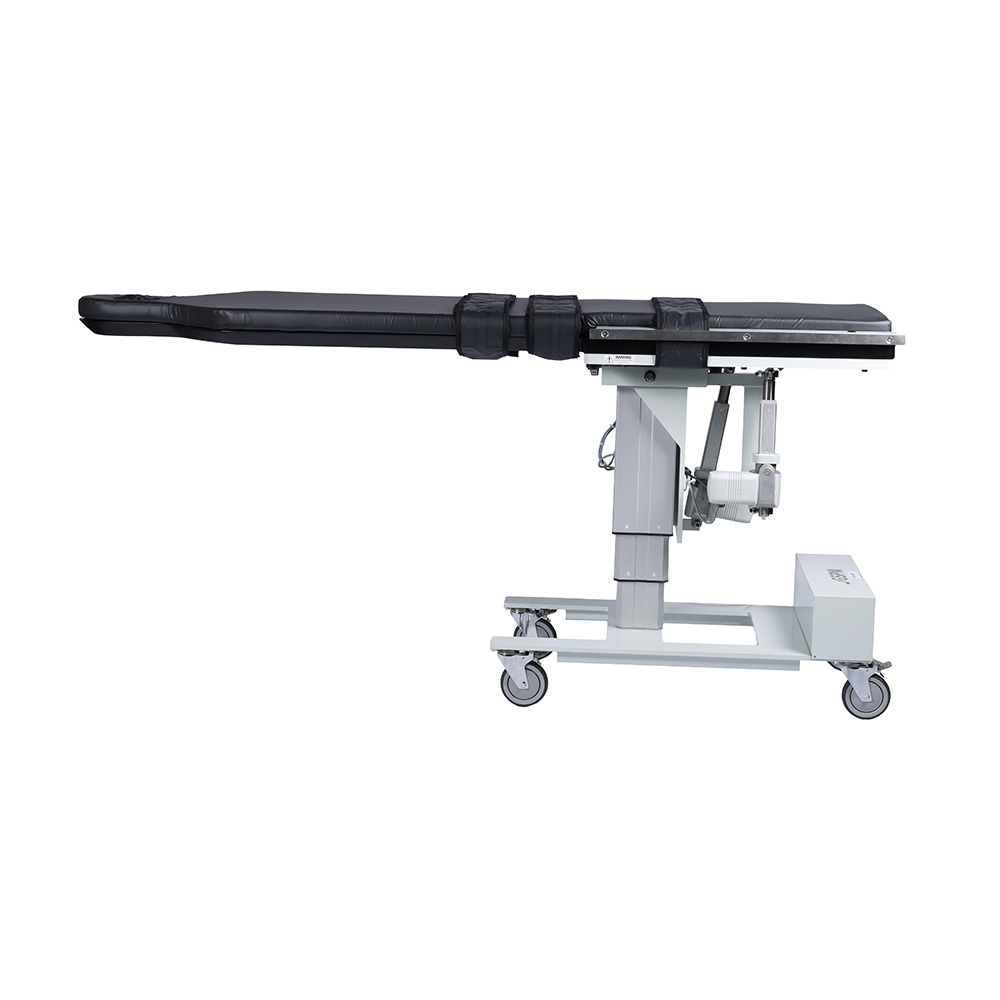

The GSPM™ is designed as a surgical C-arm table that may be suitable for pain management procedures, such as vertebroplasty or kyphoplasty, which can require oblique imaging. It is intended to assist in positioning the patient to help facilitate contrast transfer during procedures like myelograms. This C-arm table features a low-attenuation tabletop, which may support improved image quality while potentially reducing radiation exposure for both patients and clinicians. The GSPM™ Table offers height, lateral roll, and ± Trendelenburg adjustability, along with memory positioning technology, which may help enhance procedure efficiency.

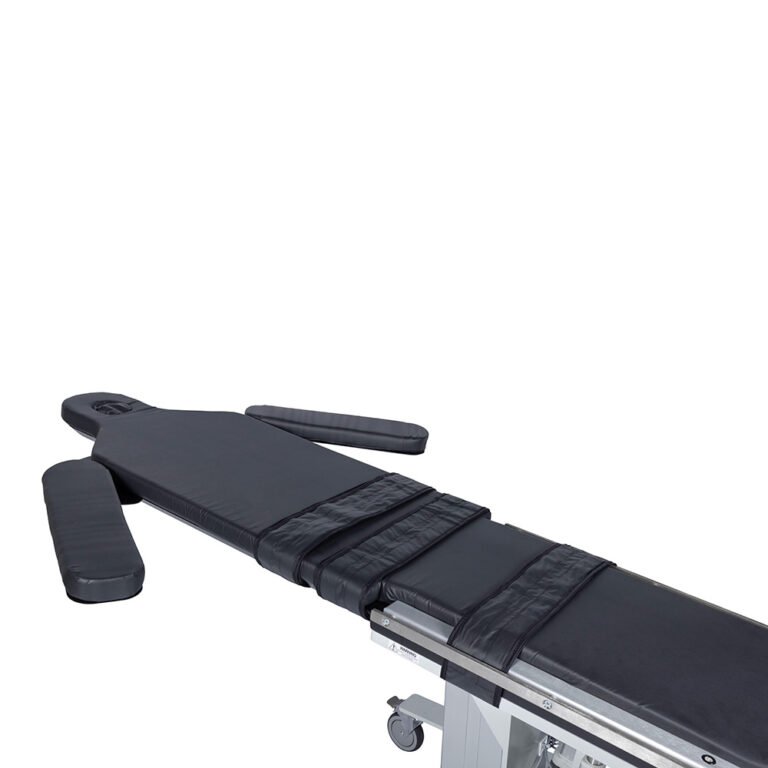

Optional features of our GSPM™ may be pictured
Our GSPM™ is designed for:
• Anesthesiologists
• Pain Medicine Practitioners
• Interventional Radiologists
GSPM™ Table Specification Sheet
| Height Adjustability | 31″ to 41″ |
| Maximum Weight Capacity | 500 lbs. |
| Imaging Area | 53″ |
| Trendelenburg/Reverse Trendelenburg | 20°/20° |

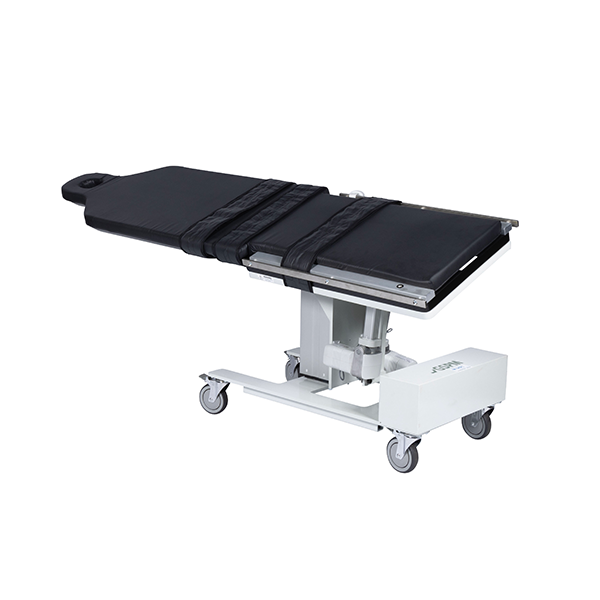

| Lateral Tilt | 20° Left and Right |
| Patient Surface Length | 84″ |
| Patient Surface Width | 22″ |
| Weight | 556 lbs. |
| Foam | California Technical Bulletin 117 – Section E |
| Electrical | 120 VAC, 60 Hz, 1.6A Max |
| Warranty | 5 Years |

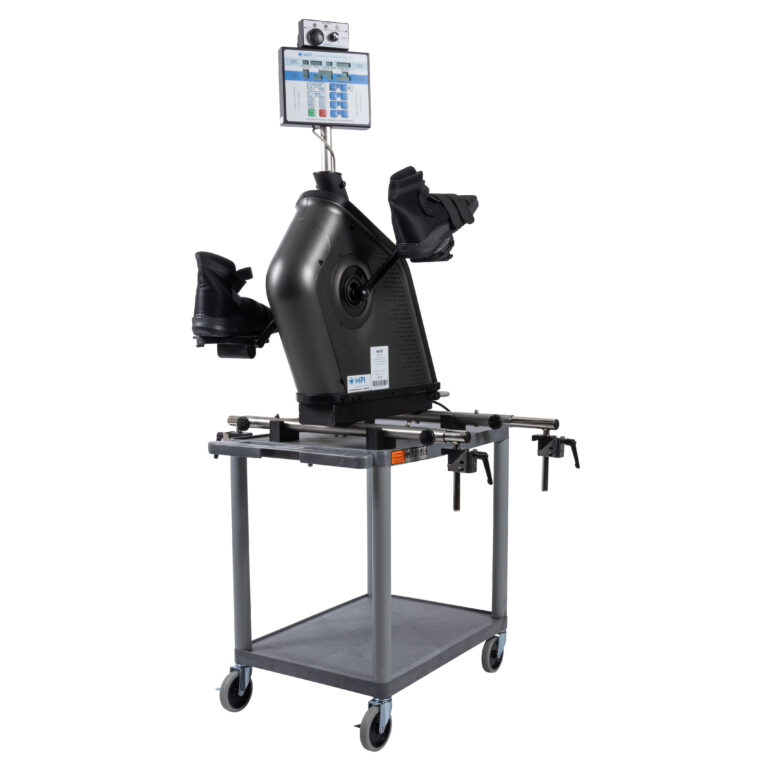

| Compatible with | Cath Ergometer™ |
