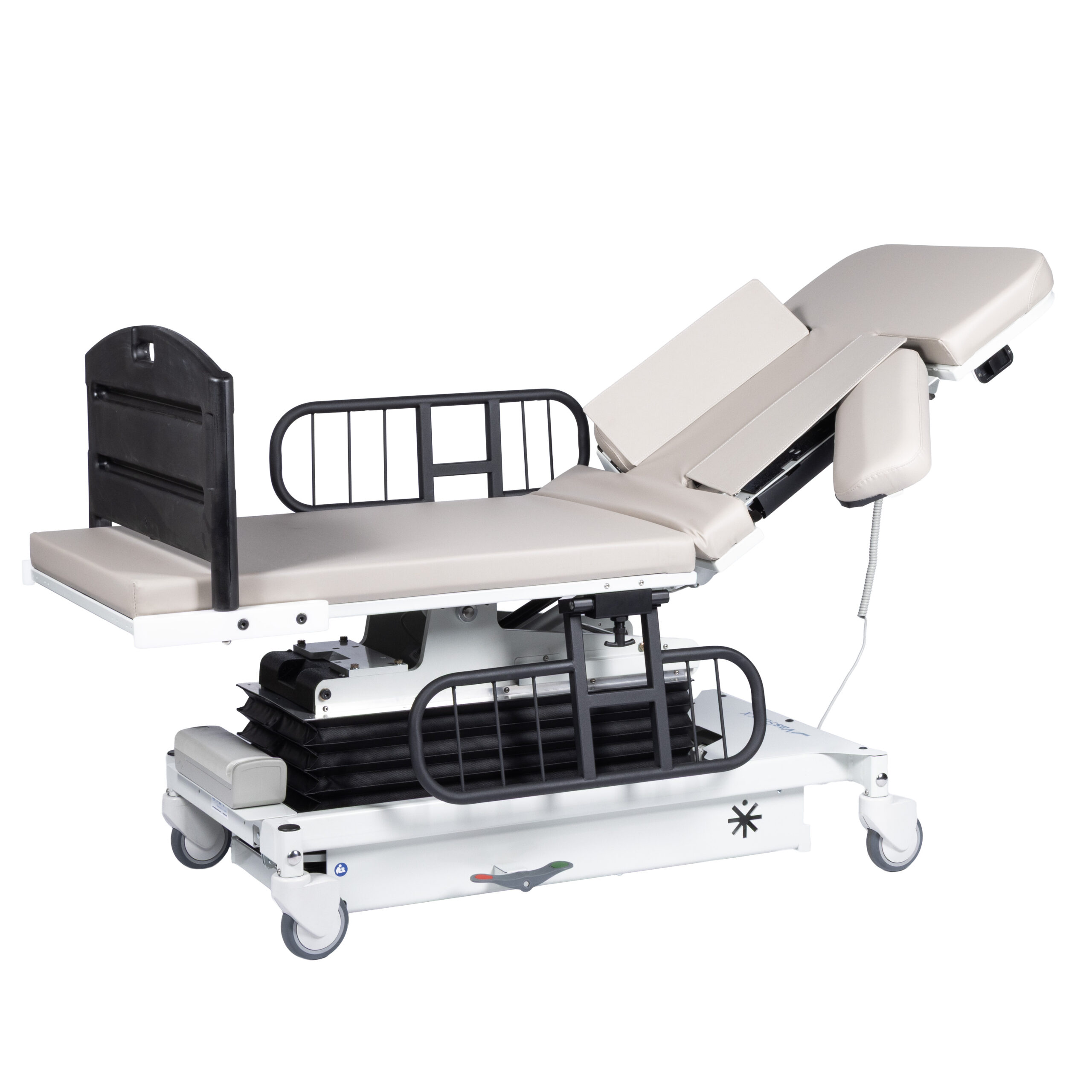

VasScan Table™ X

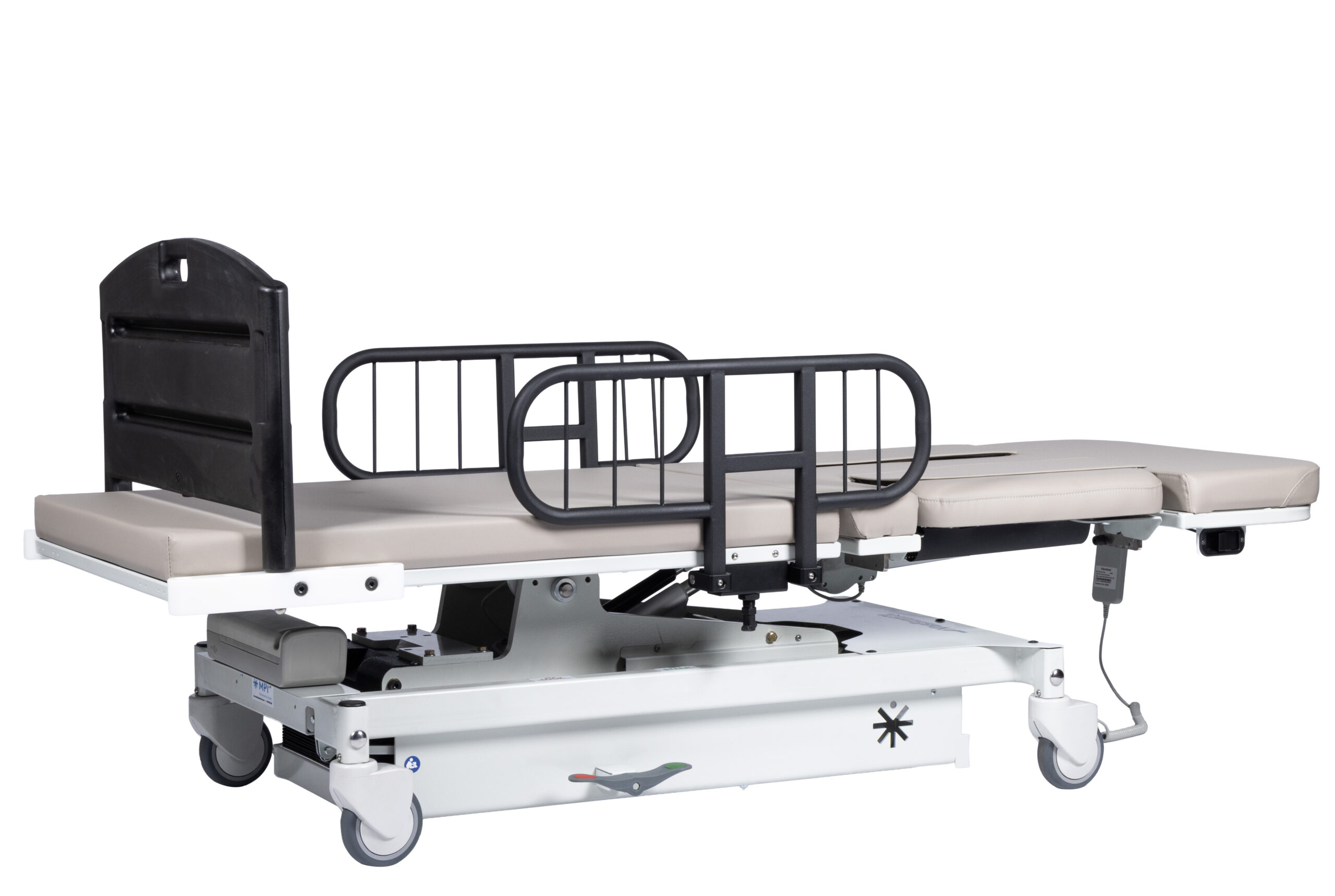

The VasScan Table™ X is designed with minimizing the risk of repetitive stress injury, reduce exam time, and improve results in mind, while bariatric capabilities allow for a 600 lb. patient weight capacity and meeting the ADA height transfer standard of 19″.

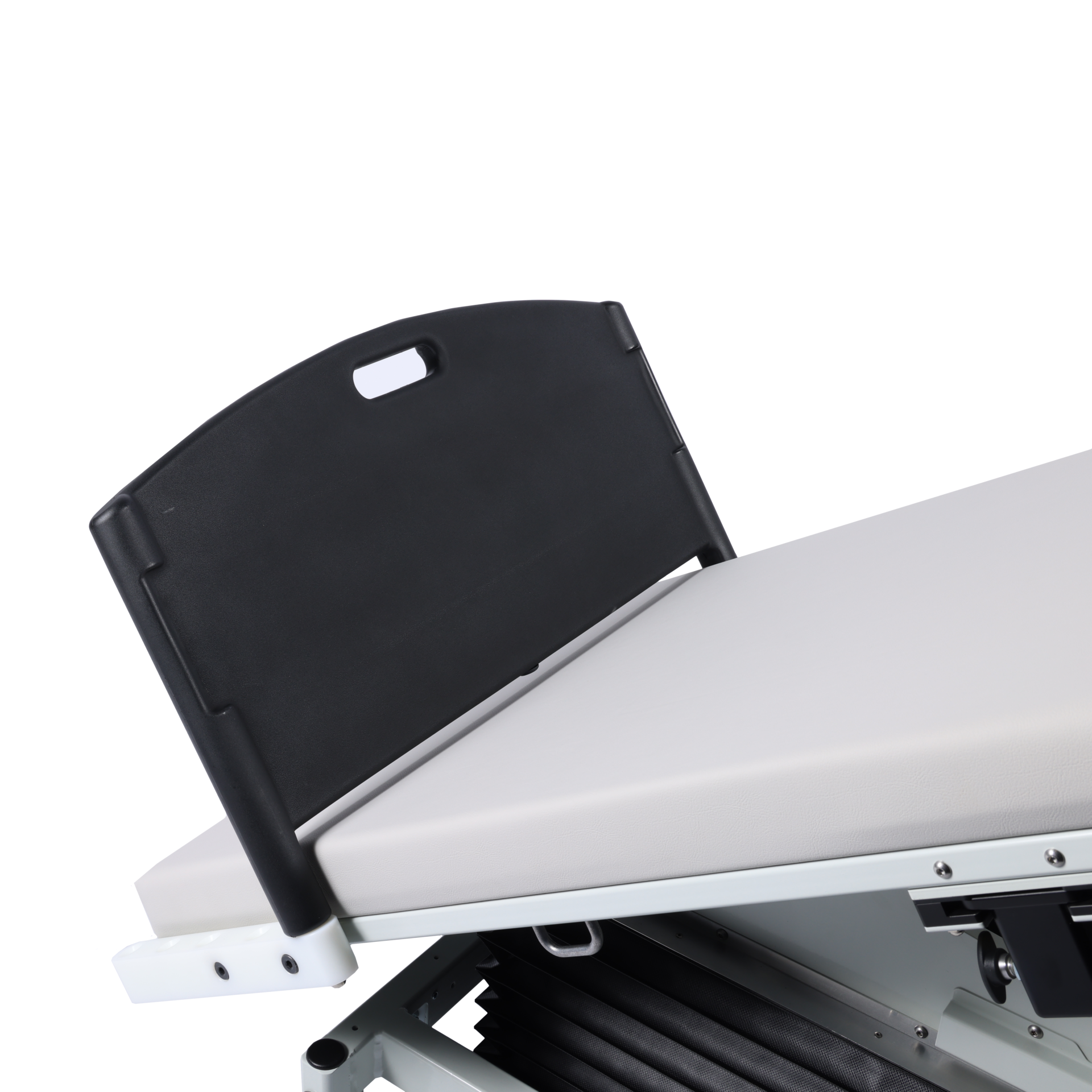

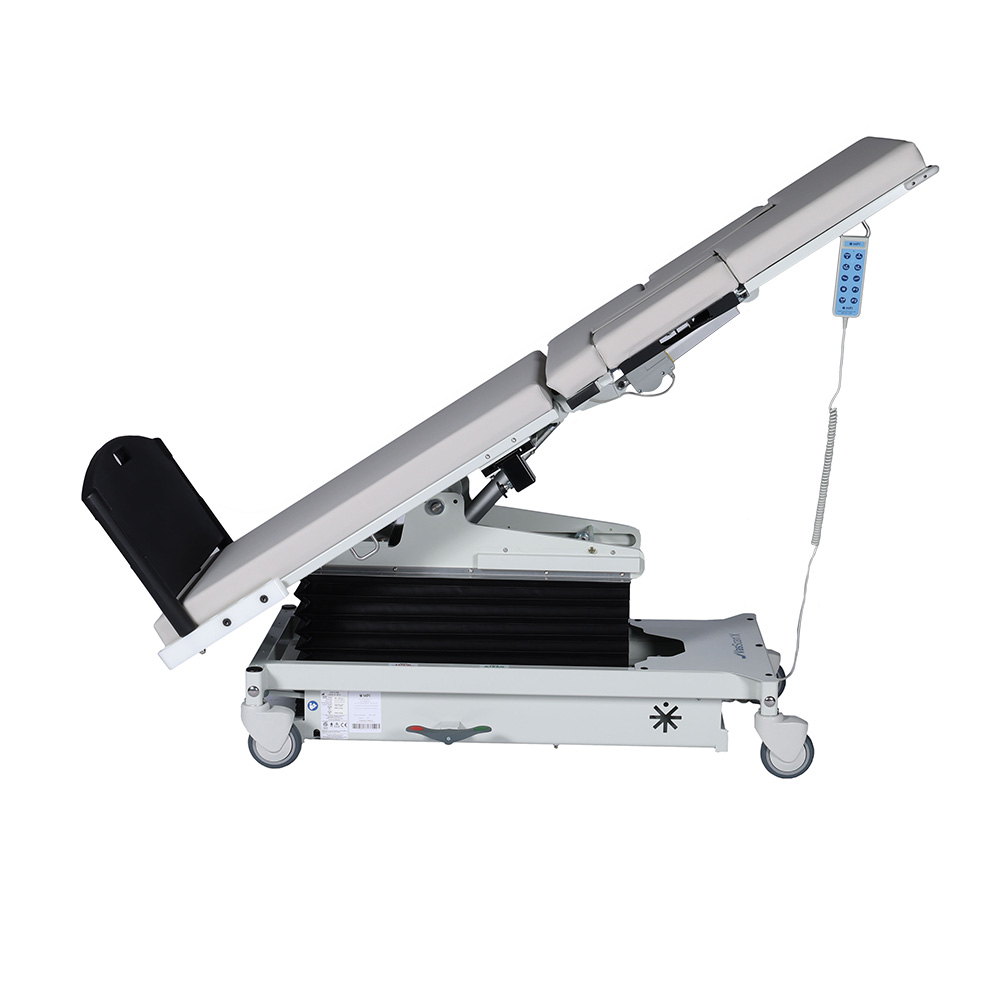

The design includes a steep 30° reverse Trendelenburg position and an adjustable/removable footboard to help facilitate patient positioning and accommodate a broader range of needs. The table’s features are aligned with considerations outlined in the SVU Vascular Technology Professional Performance Guidelines.
The 30° reverse Trendelenburg position and adjustable footboard are intended to support procedures by promoting venous pooling, aiding in the visualization of lower extremity veins.

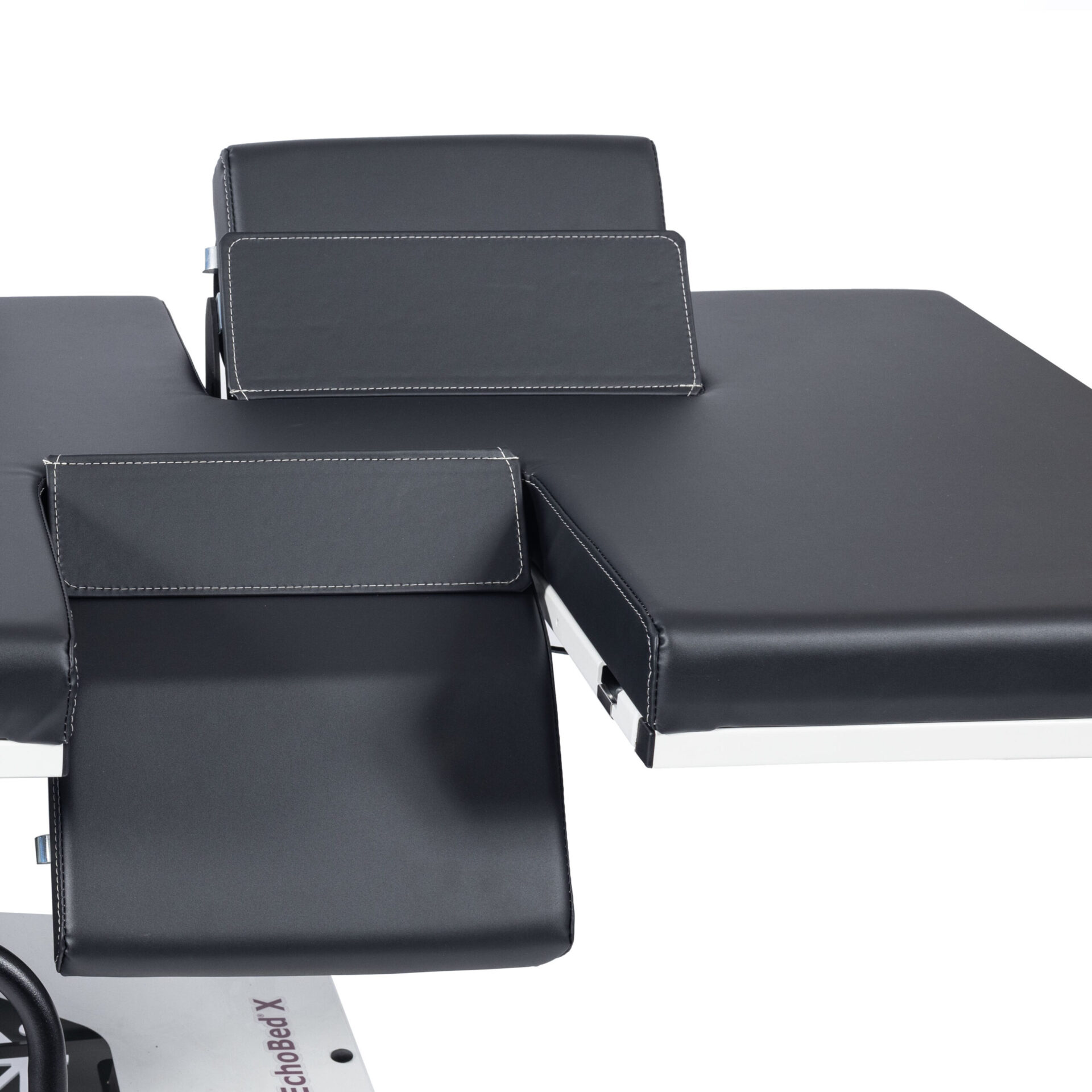

For added versatility and user comfort, the optional Dual Imaging Drop Sections are designed to provide ergonomic access for echocardiogram imaging, aiming to enhance the table’s utility for multi-modality applications.

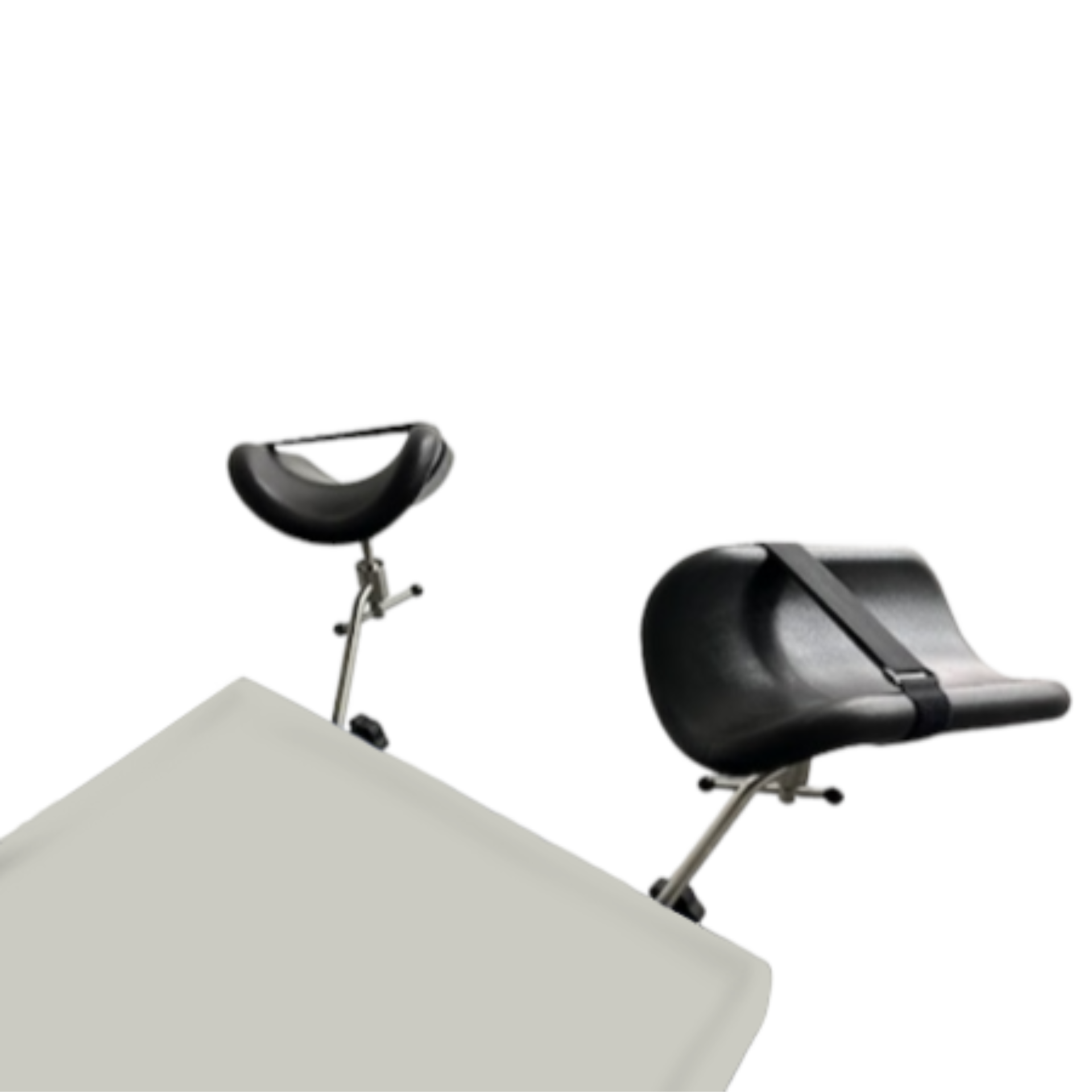

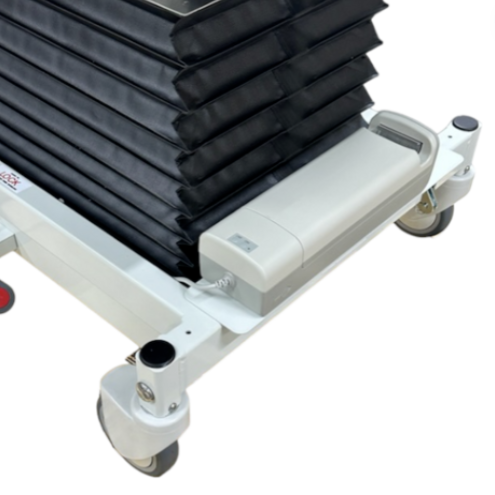

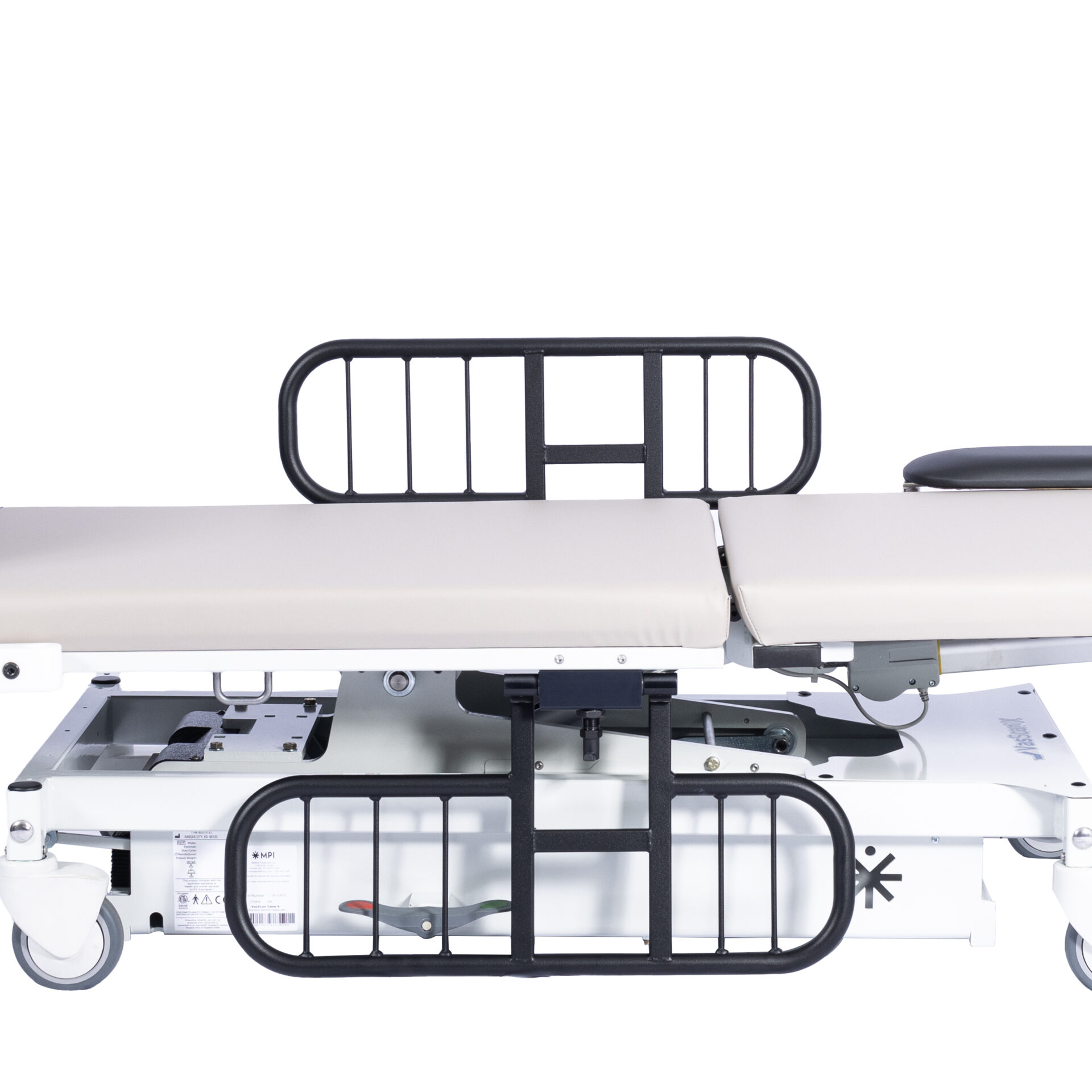

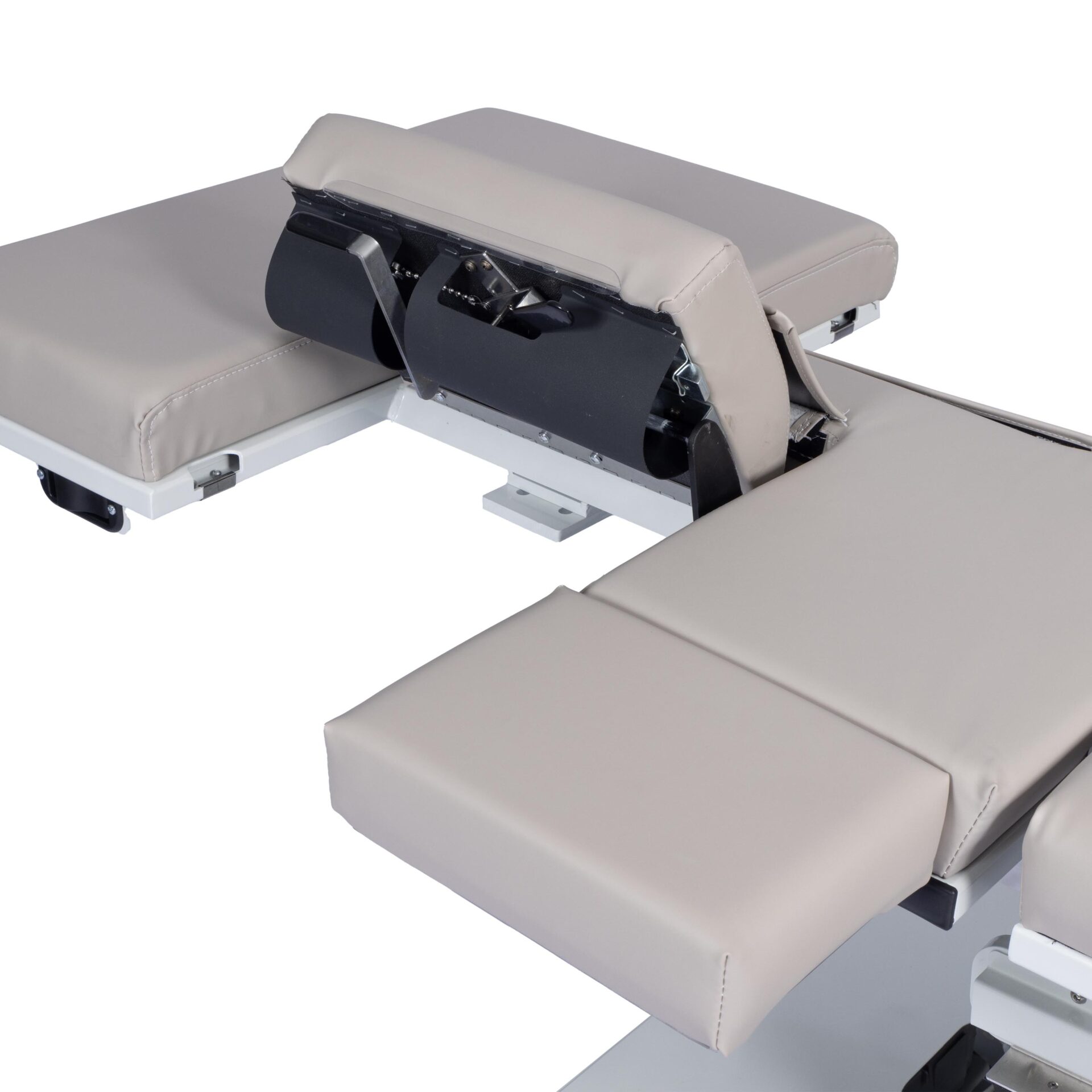

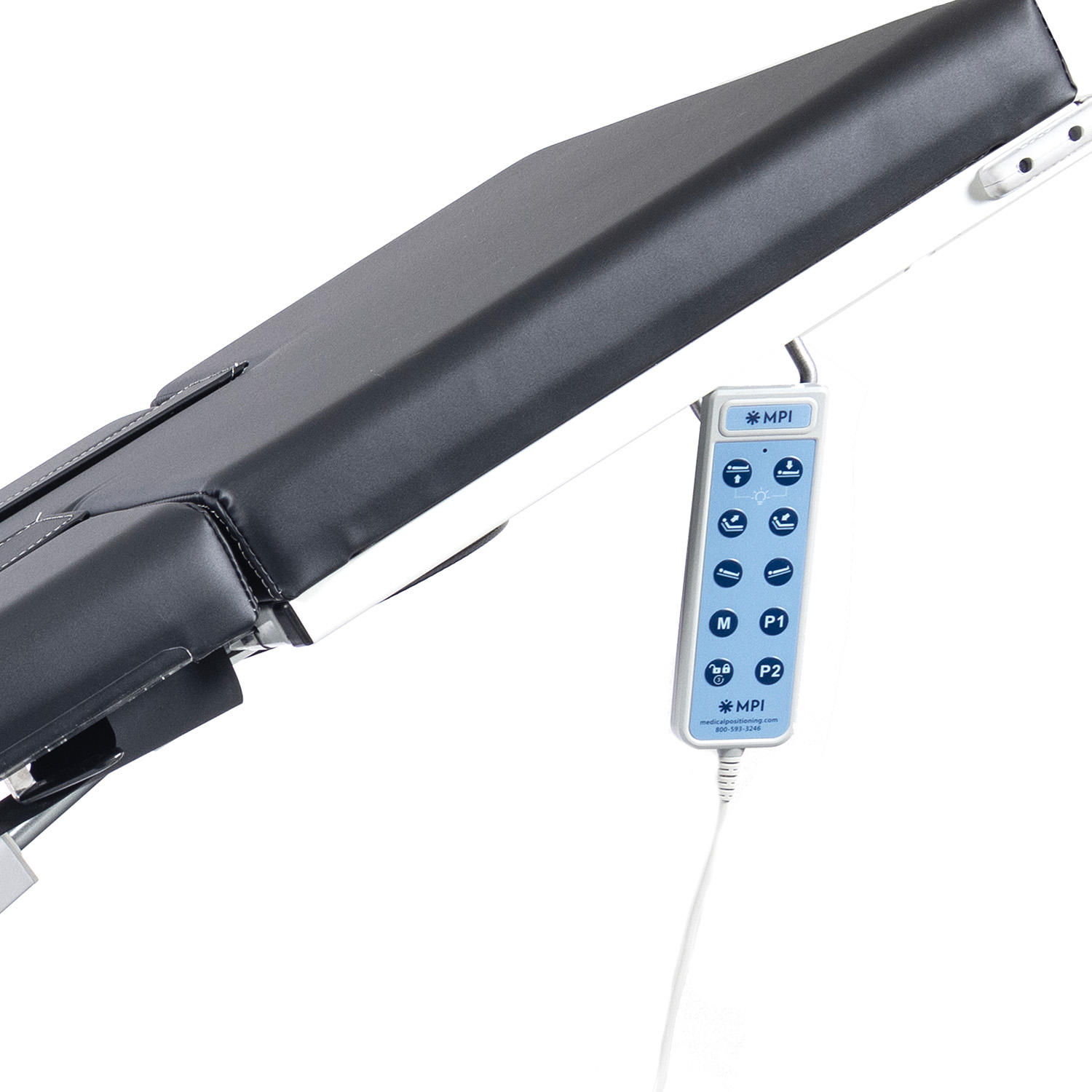

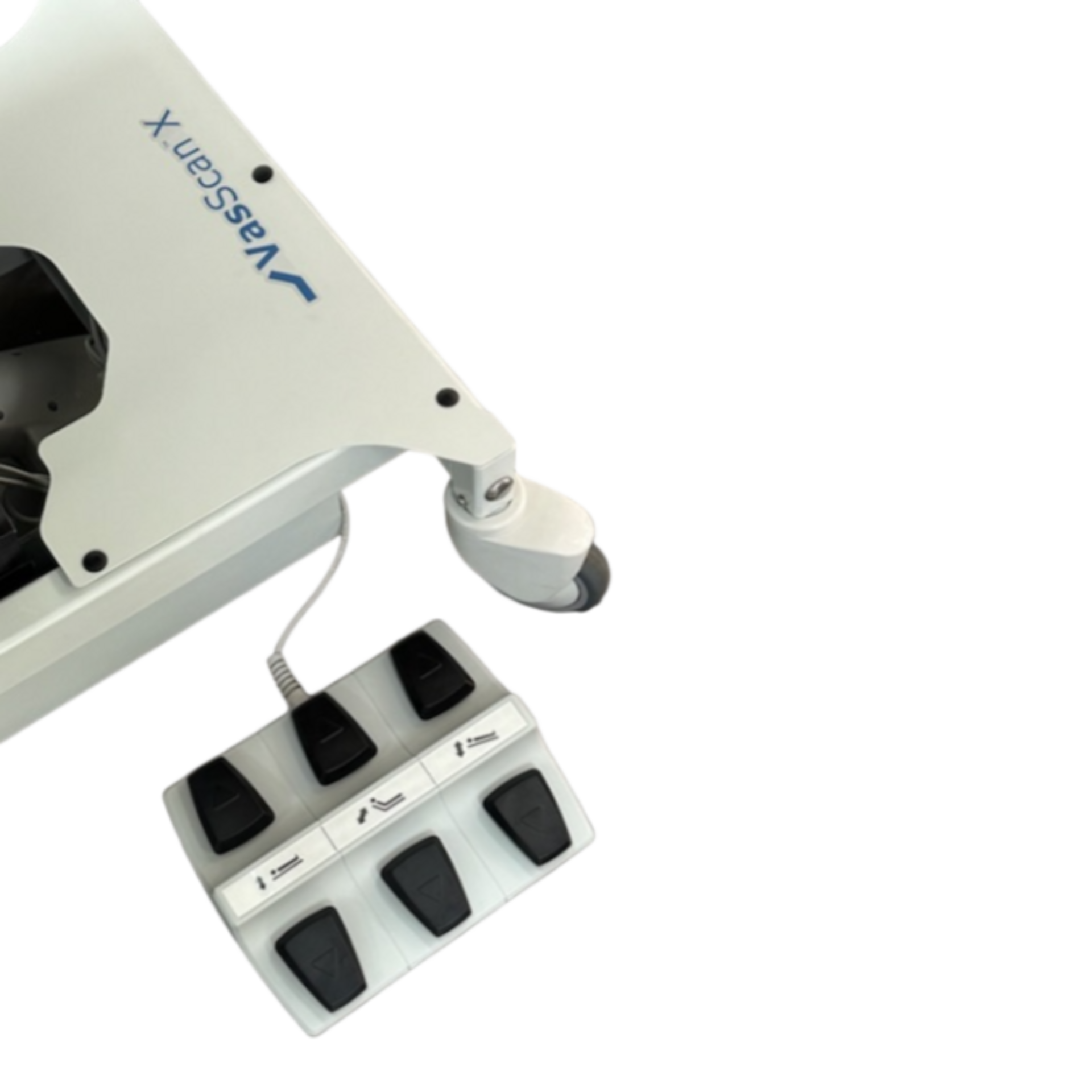

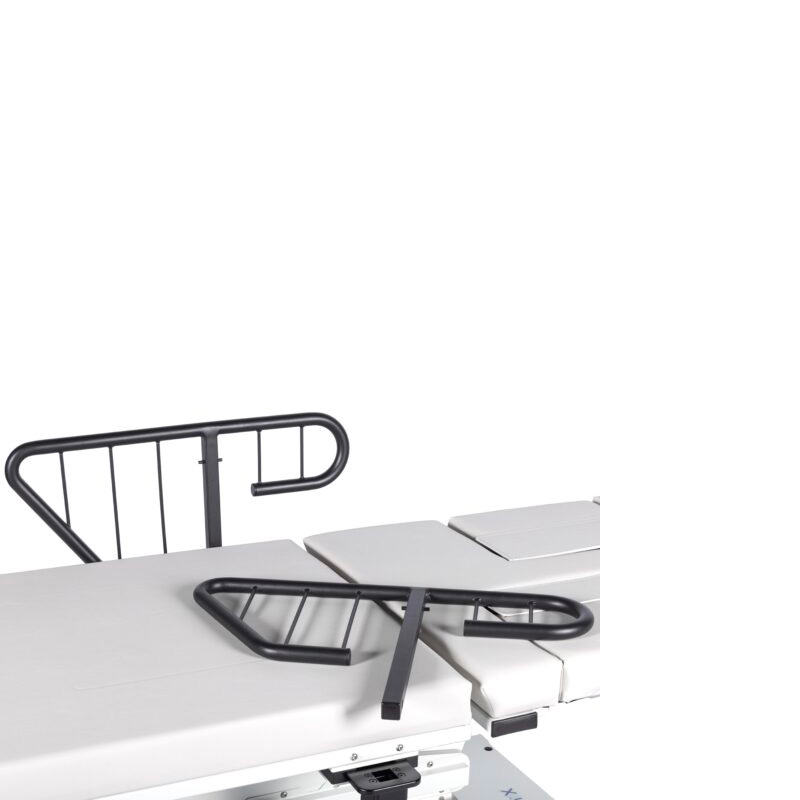

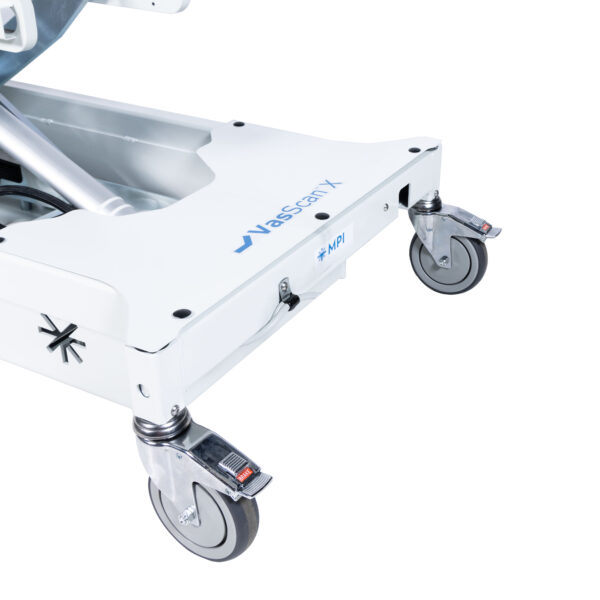

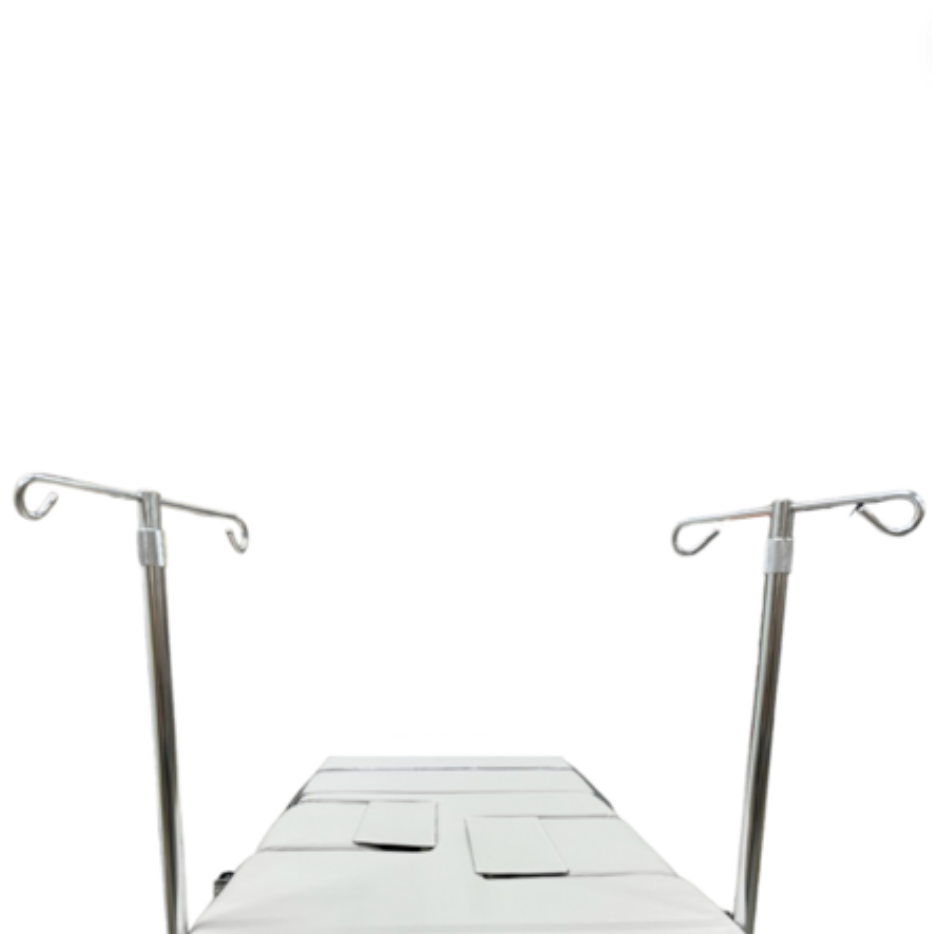

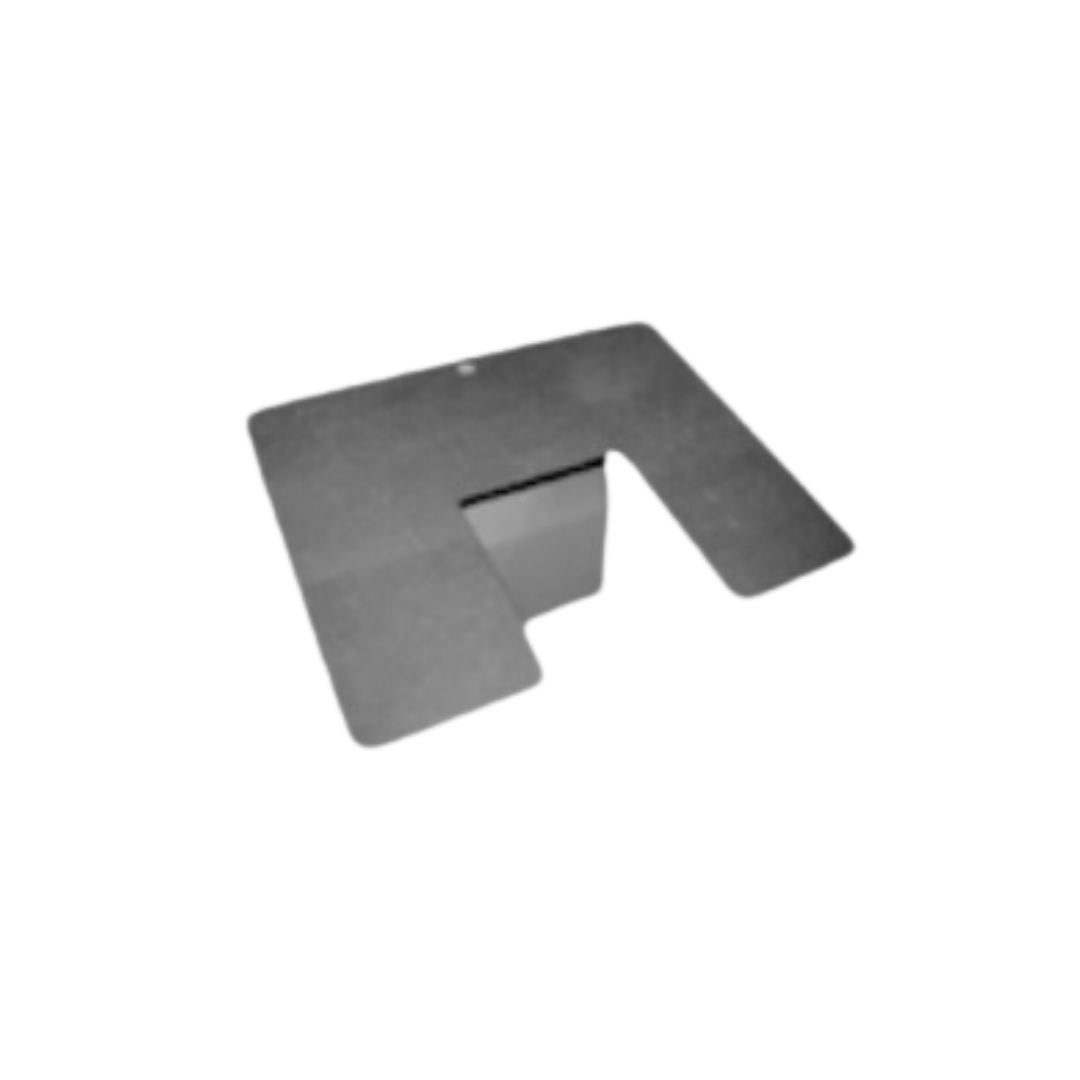

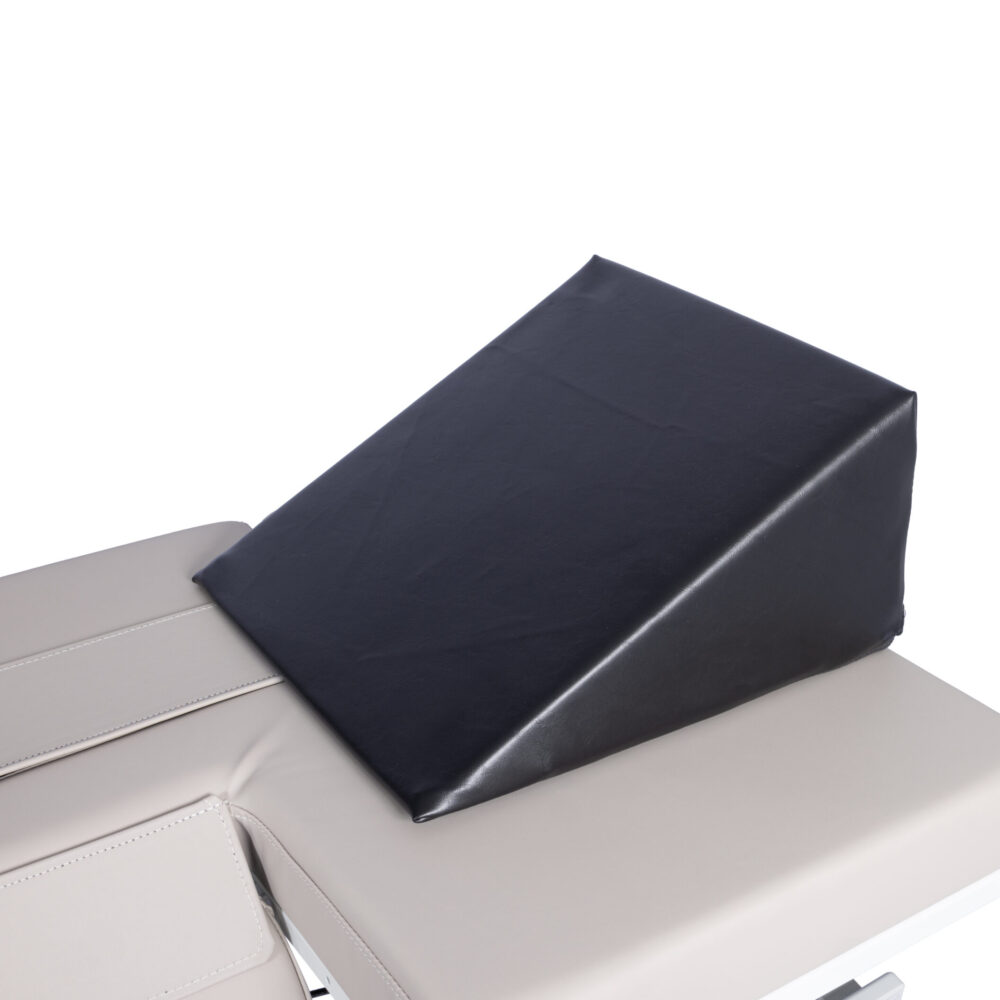

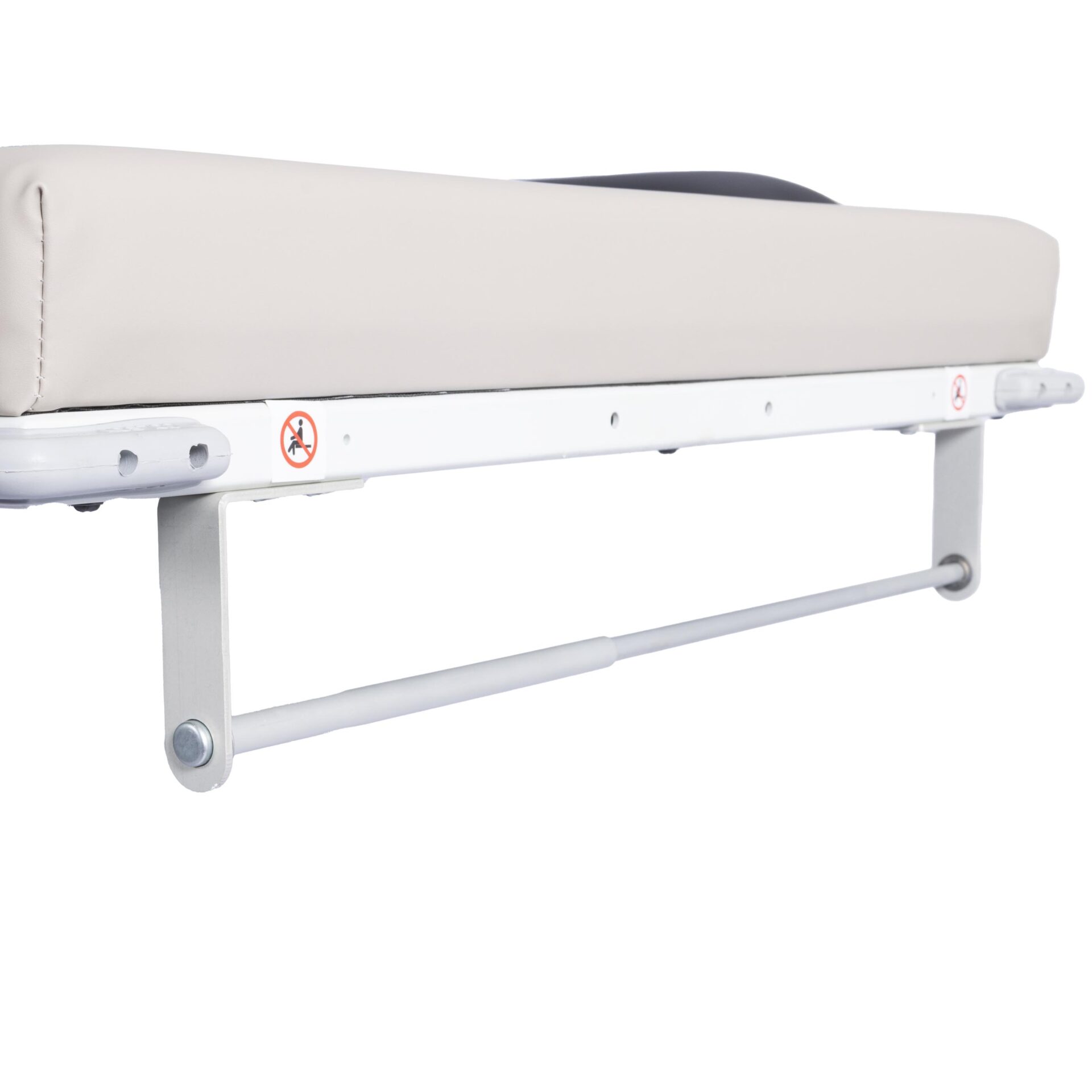

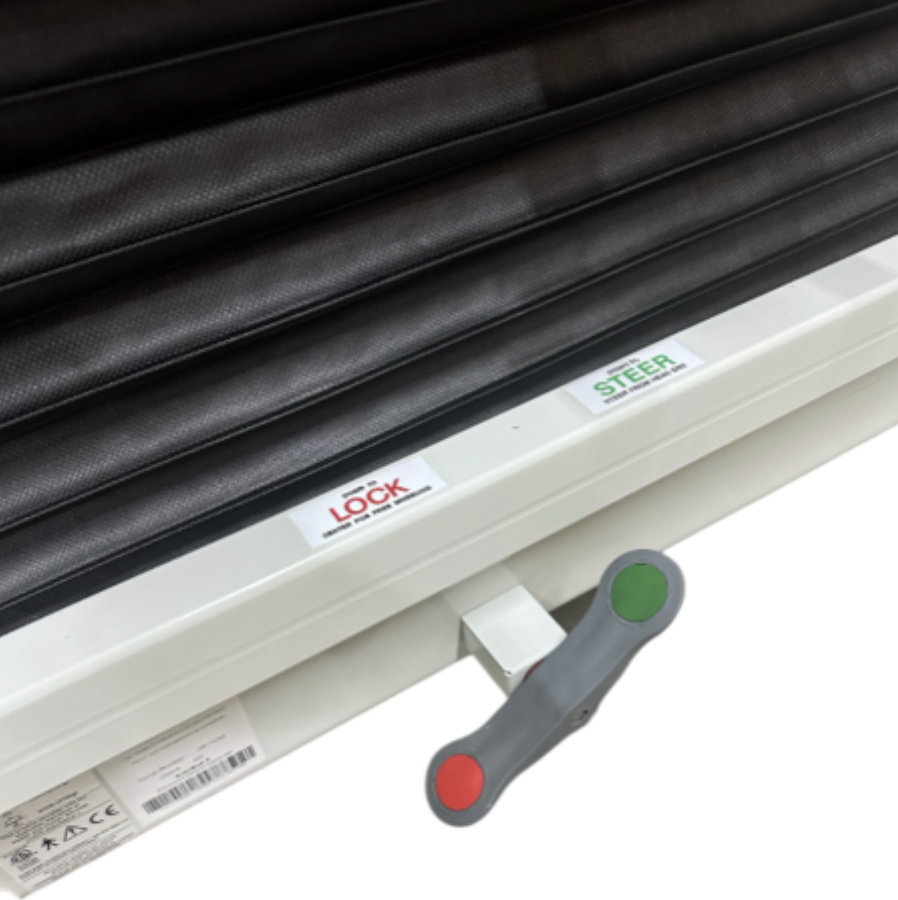

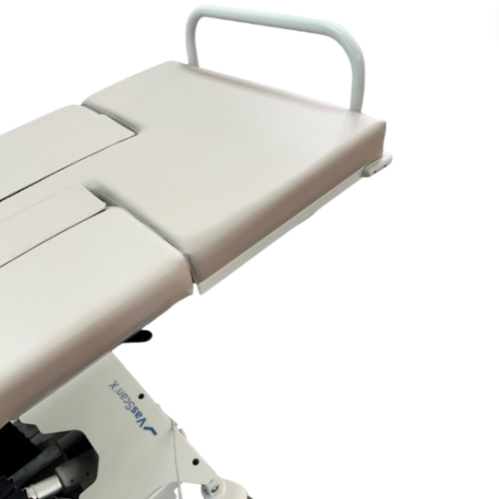

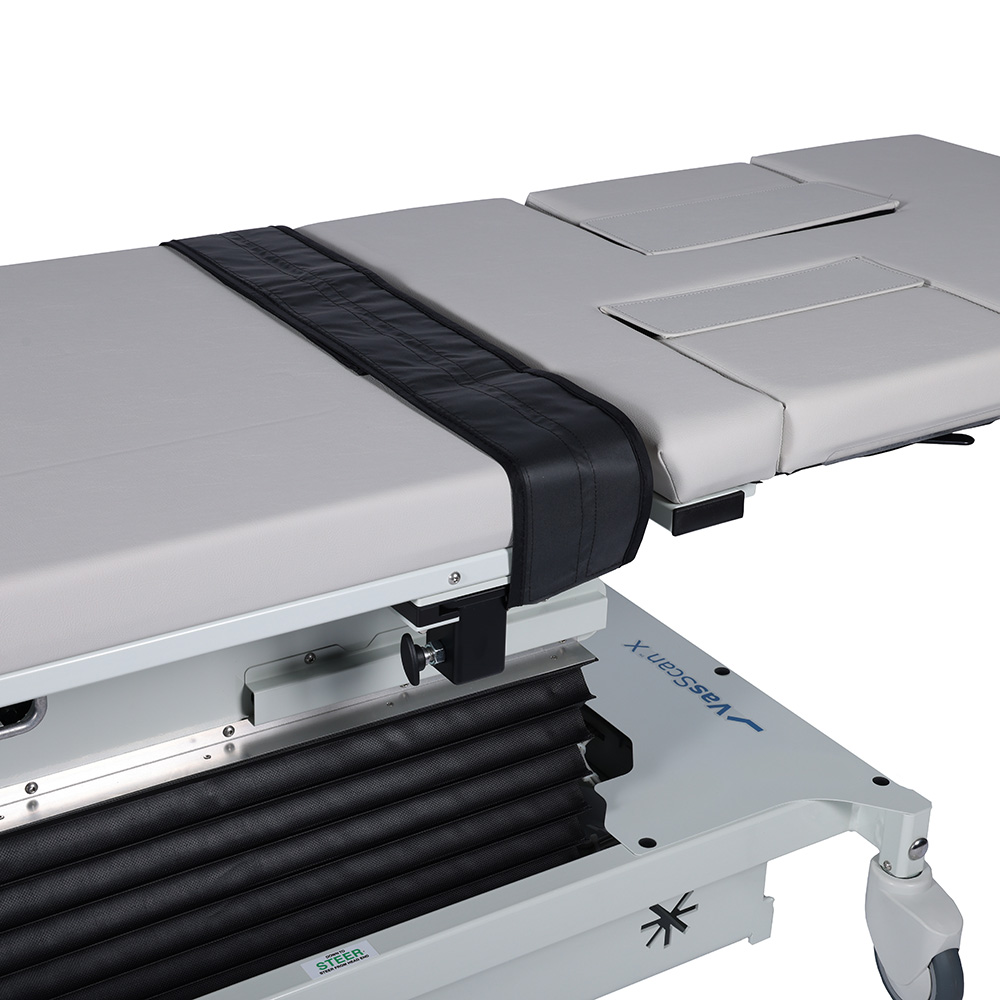

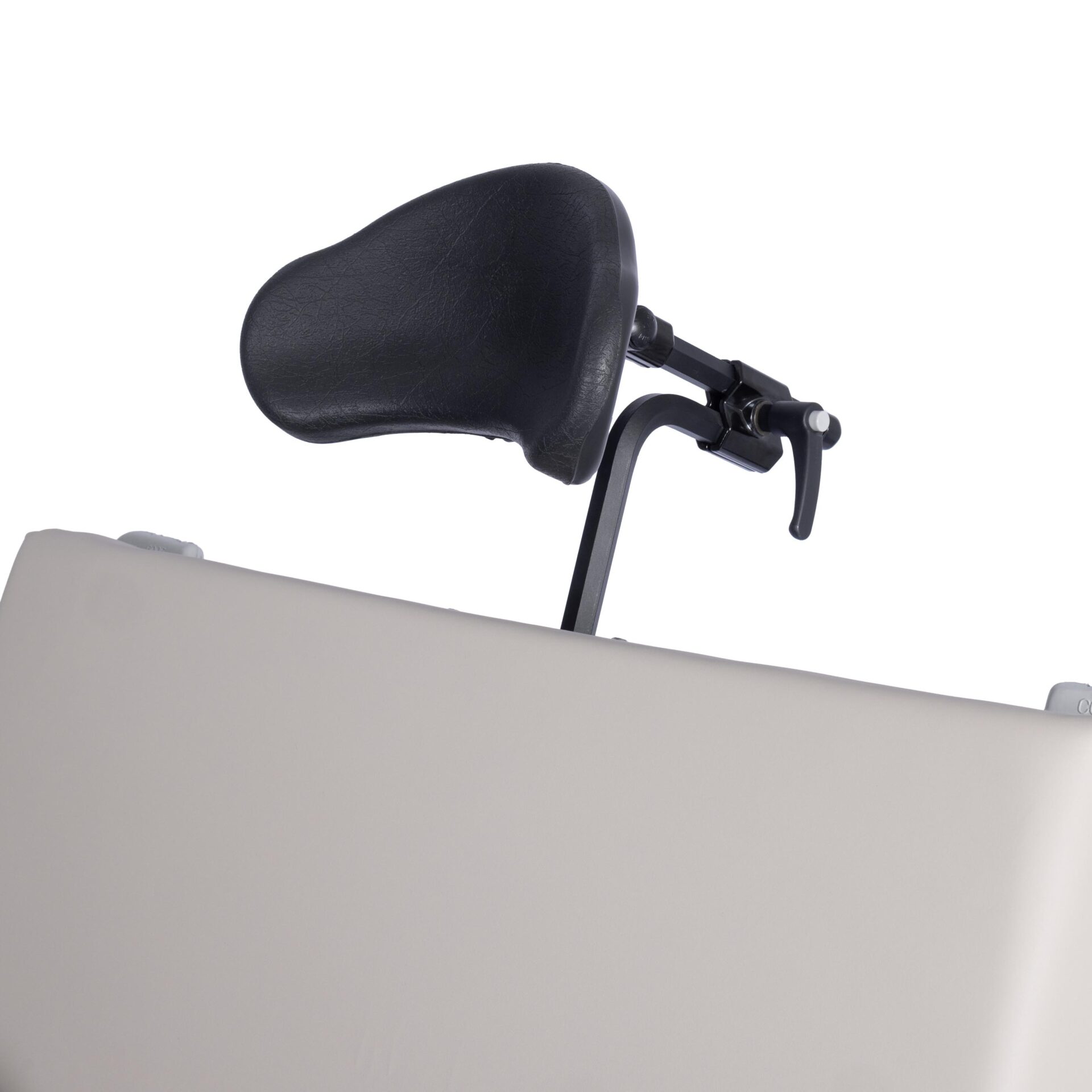

Optional features of our VasScan Table™ X may be pictured:
Our VasScan Table™ X is designed for
• Vascular Sonographers
• Vascular Surgeons
VasScan™ X Specification Sheet
| Height Positioning | 19″ to 38″ |

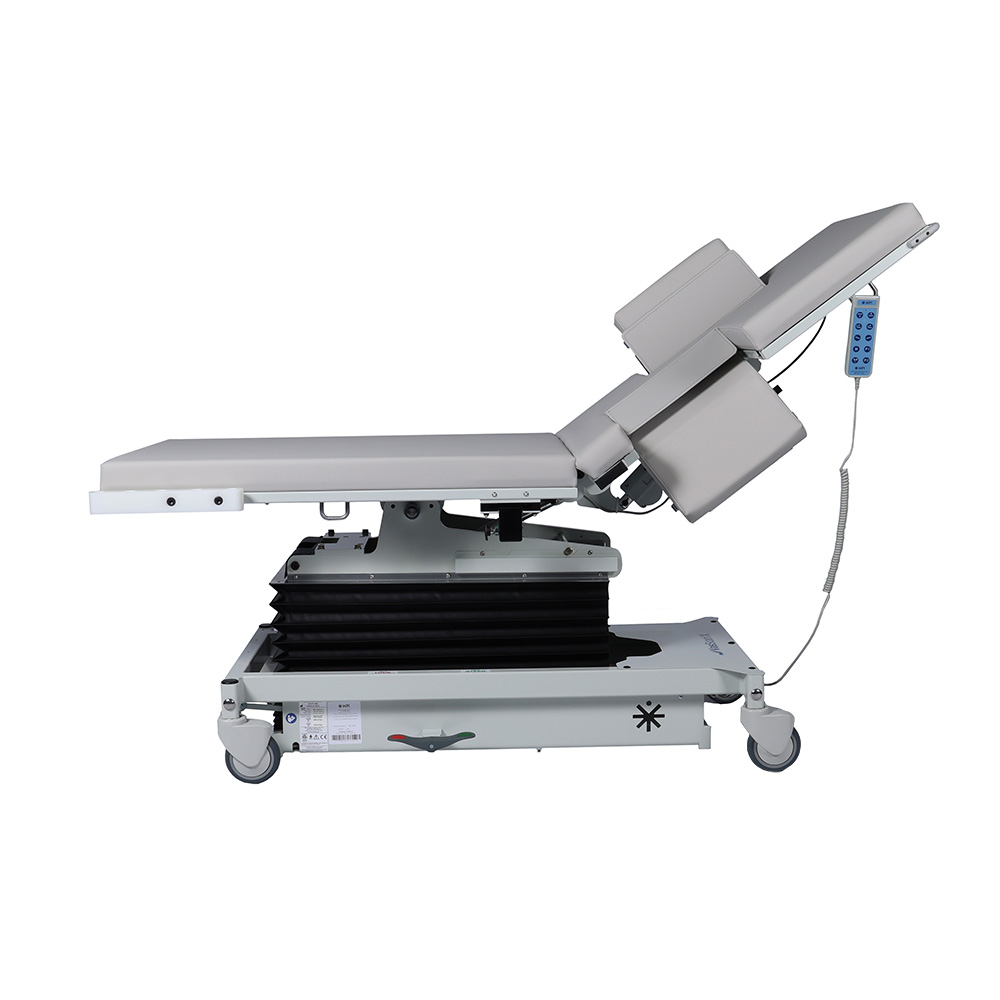

| Fowler Positioning | 65° |
| Trendelenburg/Reverse Trendelenburg Positioning | 15°/30° |
| Maximum Patient Capacity | 600 lbs. |
| Patient Surface Width | 28″ |
| Patient Surface Length | 80.5″ |
| Warranty | 2 Years |
| Foam | California Technical Bulletin 117 – Section E |
| Electrical | 100-240VAC 50/60Hz 5A |
| Vinyl | California T.B. 117-2013 NFPA 260- Cover Fabric – Class I UFAC Fabric – Class I |
Compare Echocardiography Tables Features
| EchoBed® X | Stress EchoBed® | VasScan Table™ X | EchoTable™ | HUT™ Tilt Table | RR HUT™ Tilt Table | UltraScan® Versa™ Table | UltraScan® Versa™ Premier Table | |
| Height Positioning | 19″ to 38″ | 24″ to 34″ | 19″ to 38″ | 24″ to 34″ | 31″ to 39″ | 31″ to 39″ | 22″ to 38″ | 22″ to 38″ |
| Fowler Positioning | Optional – 0° – 65° | N/A | 0° – 65° | Optional – 0° – 65° | N/A | N/A | 0° – 90° | 0 ° – 90° |
| Trendelenburg/Reverse Trendelenburg Positioning | Optional – 15°/15° | 15°/15° | 15°/30° | Optional – 15°/15° | 15°/90° | 15°/90° | Optional – 15°/15° or 15°/25° | 15/25° |
| Lateral Tilt Positioning | N/A | 40° | N/A | N/A | N/A | N/A | N/A | N/A |
| Maximum Patient Capacity | 600 lbs. | 500 lbs. | 600 lbs. | 500 lbs. | 400 lbs. | 600 lbs. | 500 lbs. | 500 lbs. |
| Width | 30″ | 30″ | 28″ | 28″ | 30″ | 30″ | 28.5″ | 28.5″ |
| Length | 80.5″ | 78″ | 80.5″ | 79.5″ | 73″ | 73″ | 72.5″ | 72.5″ |
| Warranty | 5 Years | 5 Years | 2 Years | 3 Years | 1 Year | 3 Years | 2 Years | 5 Years |
| Foam | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | TB 117-2013 Section E | TB 117-2013 Section E |
| Electrical | 100-240VAC 50/60Hz 5A | 120 VAC, 50/60 Hz, 2.6A Max | 100-240VAC, 50/60Hz 5A | 100-240VAC, 50/60Hz 5A | 120 VAC, 60Hz, 6.5A, 230 VAC, 50 Hz, 3.4A | 120 VAC, 60Hz, 6.5A, 230 VAC, 50 Hz, 3.4A | 100 – 240 VAC, 50/60 Hz, 4.5A Max | 100 – 240 VAC,50/60 Hz,4.5A Max |
| Vinyl | California T.B. 117-2013 NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | California T.B. 117-2013, NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | California T.B., 117-2013, NFPA 260- Cover, Fabric – Class I UFAC, Fabric – Class I | California T.B. 117-2013, NFPA 260 – Cover, Fabric – Class 1, UFAC Fabric – Class 1 | California T.B. 117-2013, NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | California T.B. 117-2013, NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | TB 117-2013, NFPA 260 Cover Fabric – Class 1, UFAC Fabric – Class 1 | TB 117-2013, NFPA 260 Cover Fabric – Class 1, UFAC Fabric – Class 1 |
