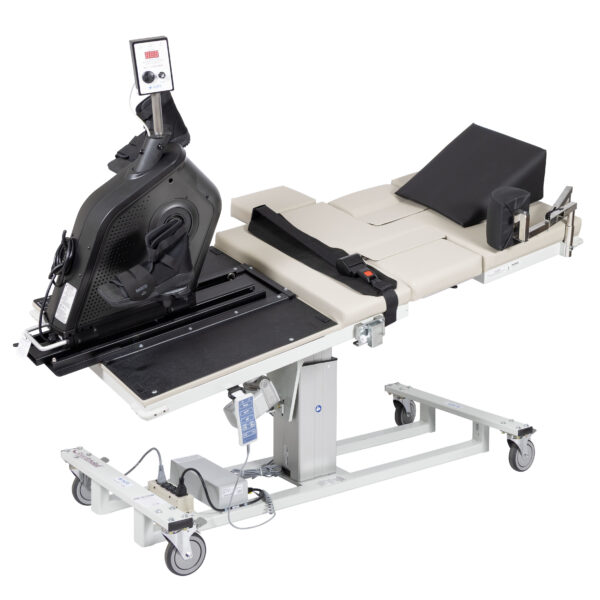

Stress EchoBed®

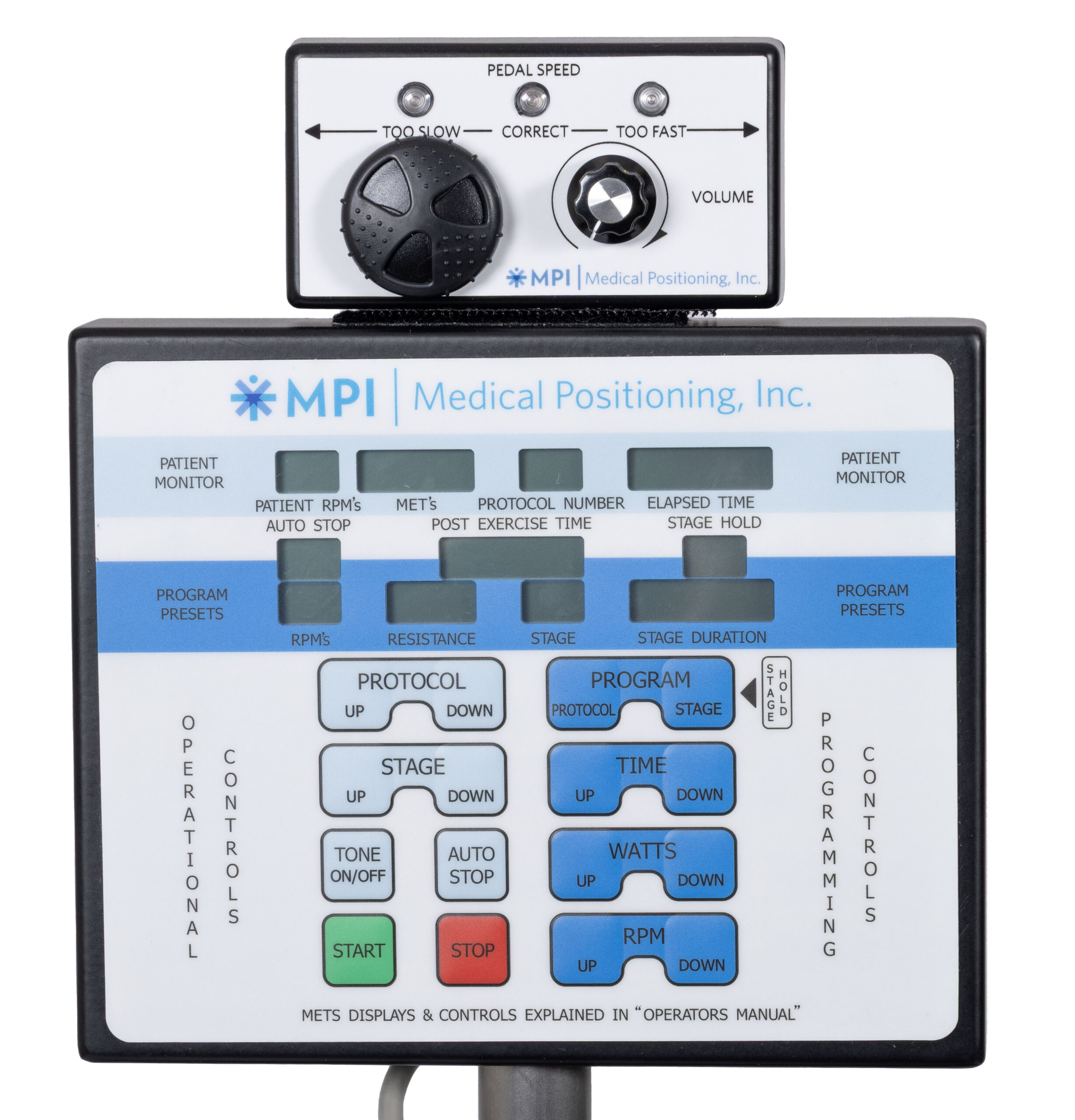

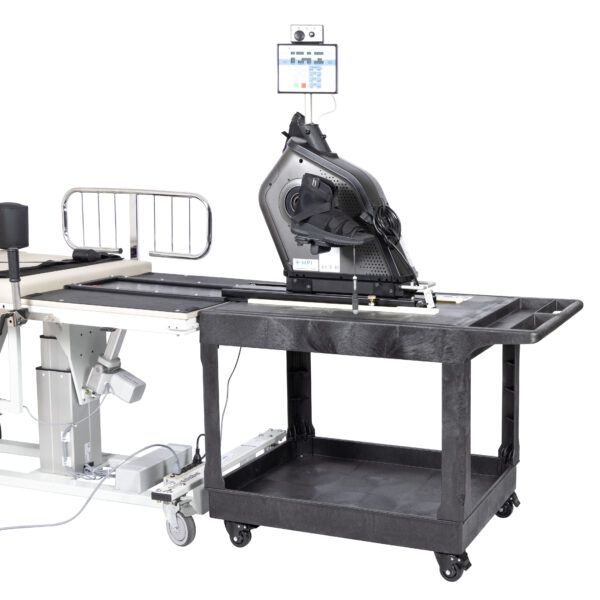

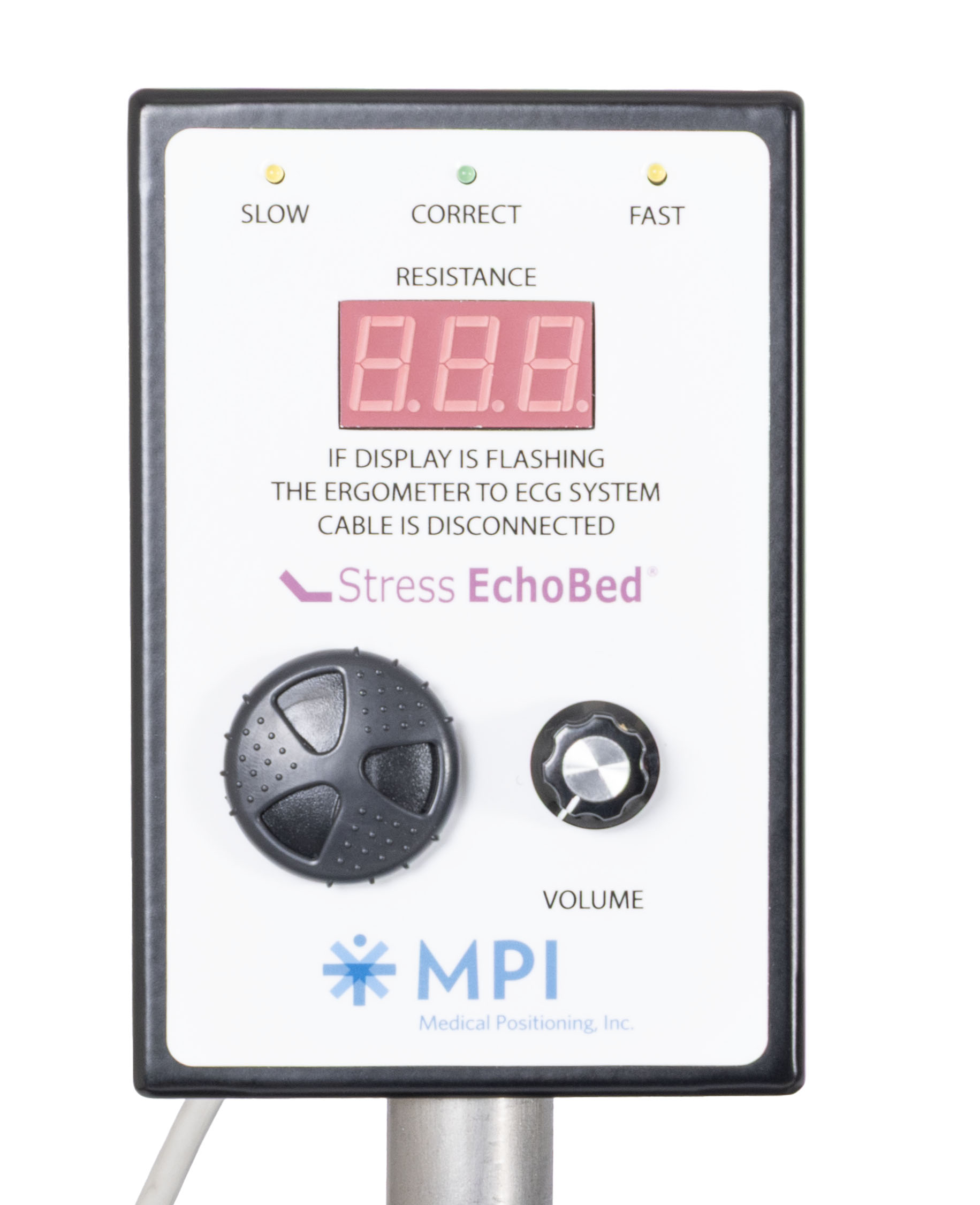

The Stress EchoBed® was designed with input from cardiologists and sonographers, aiming to support patient positioning for improved cardiac structure imaging during peak exercise. The Stress EchoBed® includes a combination of ergonomic features and industry-standard capabilities, such as a patient weight capacity of up to 500 lbs. and an adjustable, removable ergometer, which may help enhance value to your department.

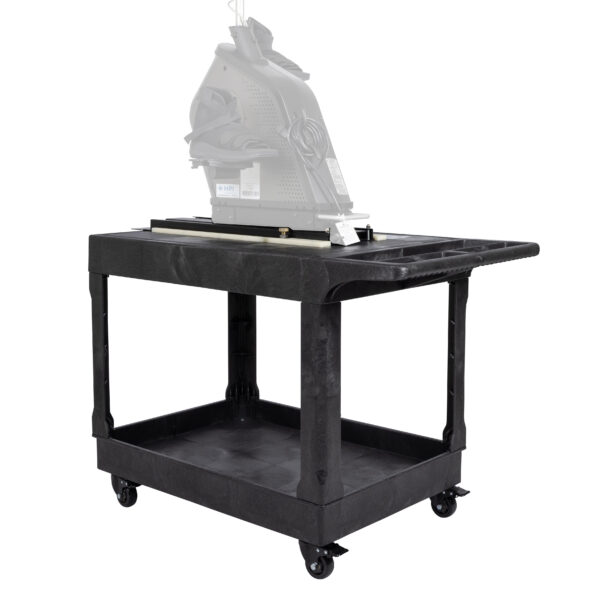

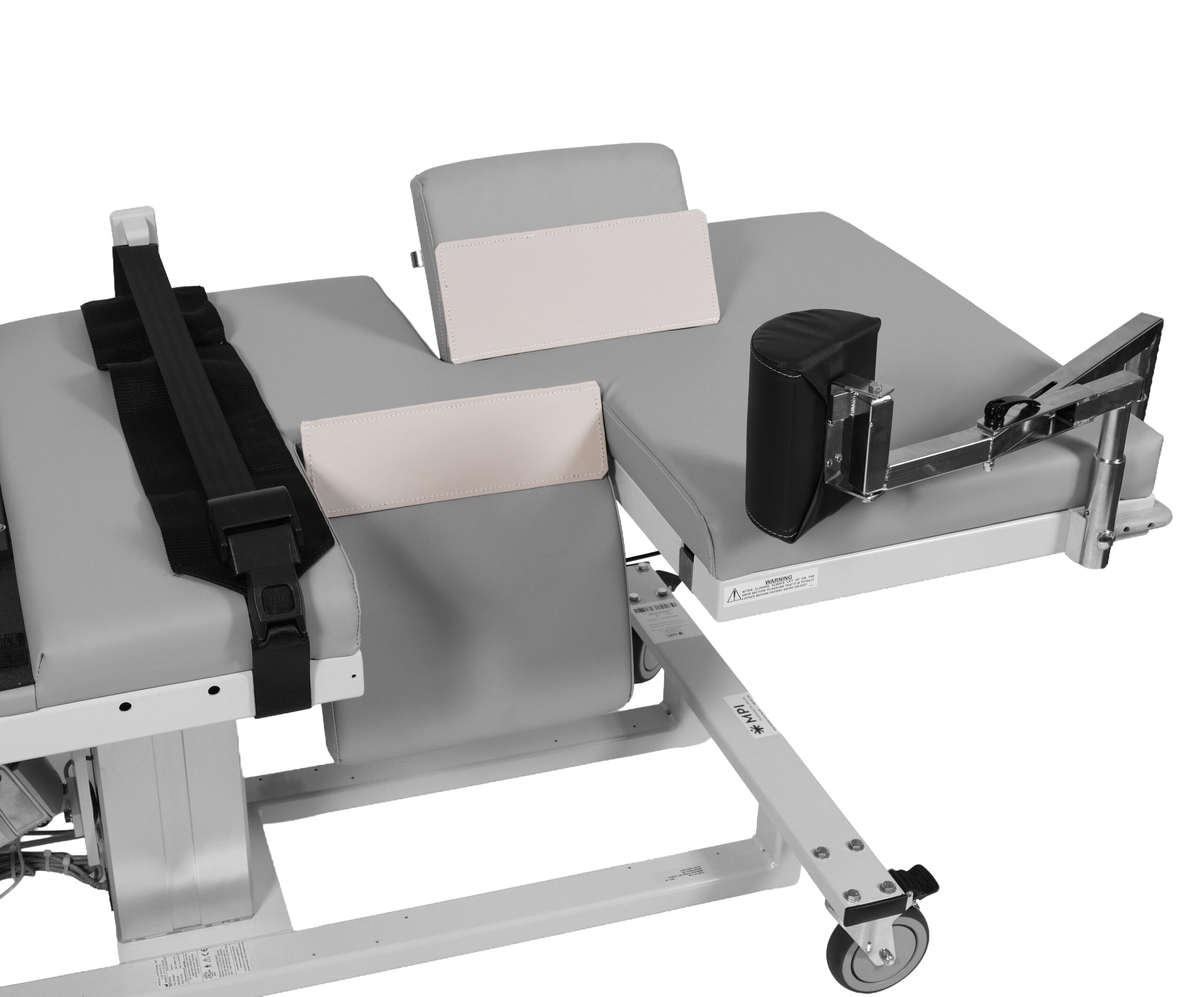

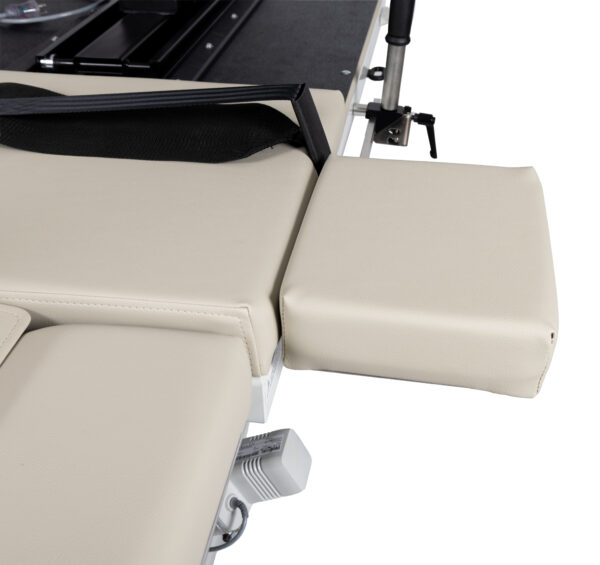

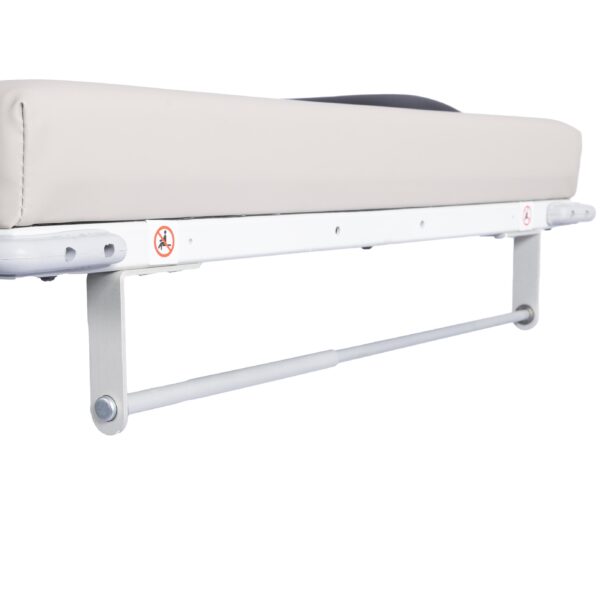

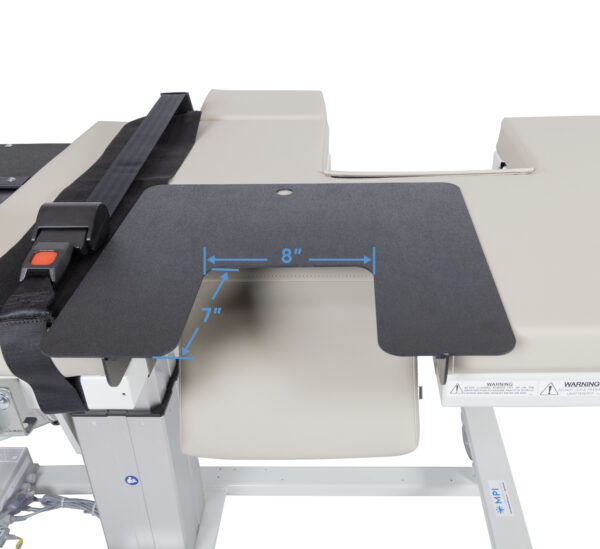

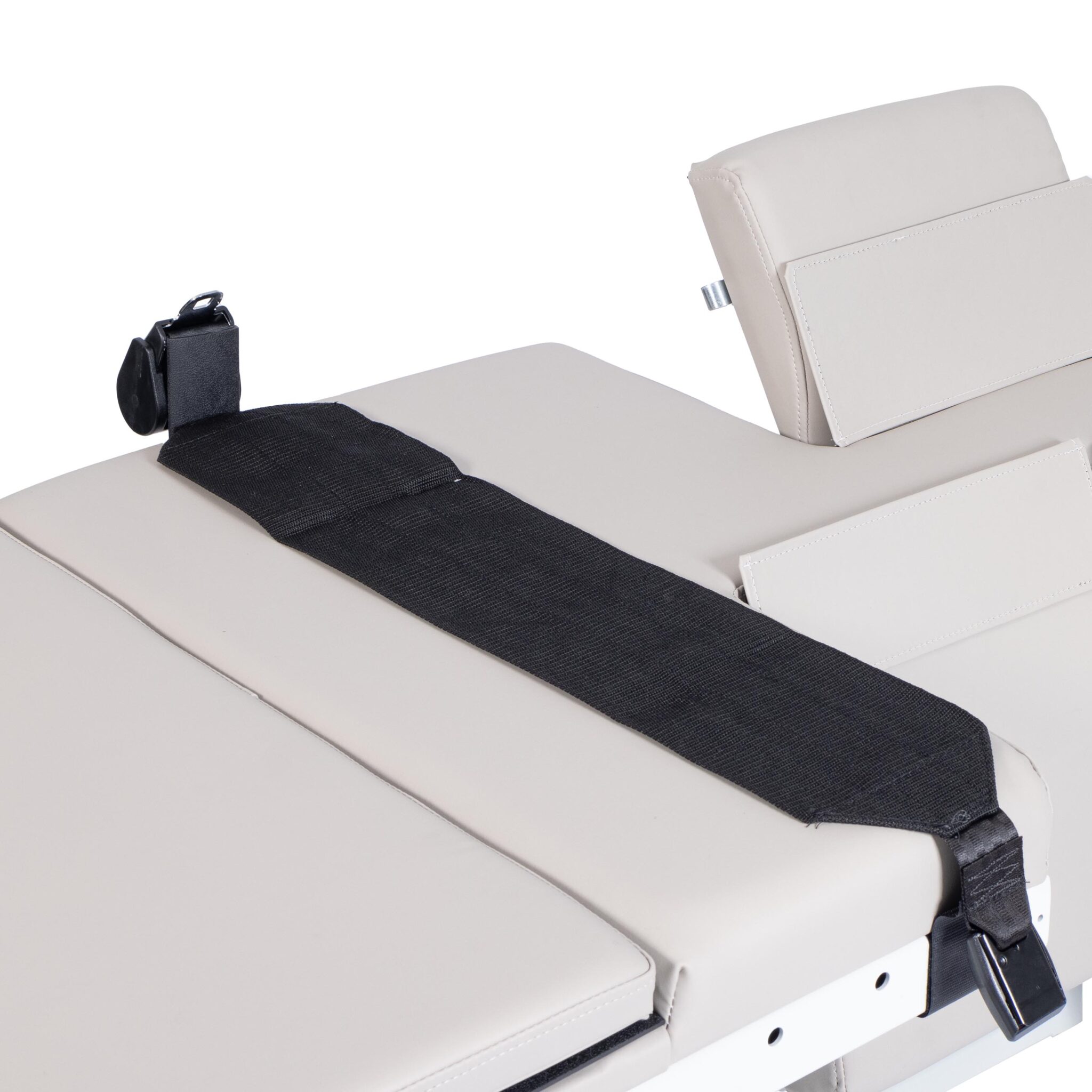

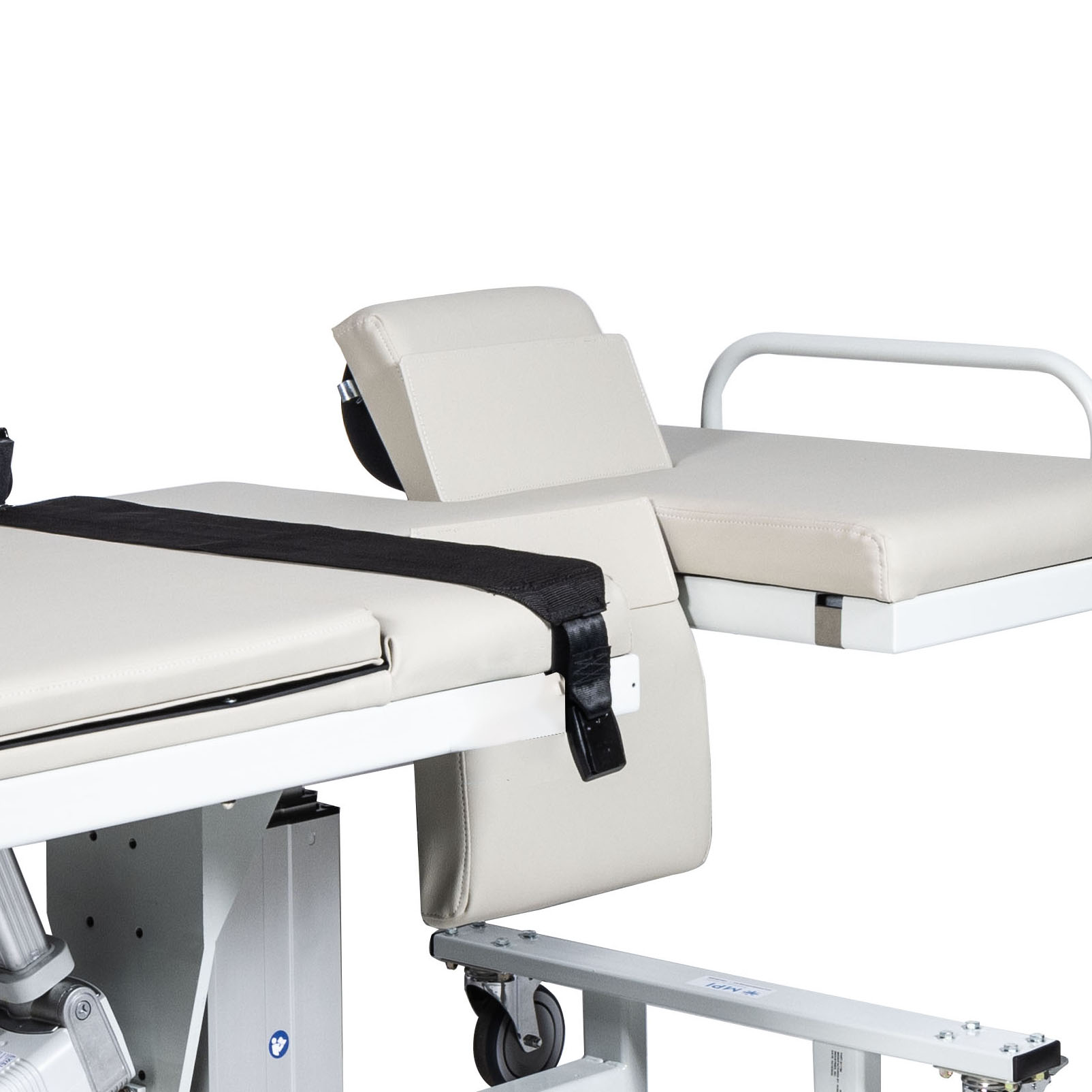

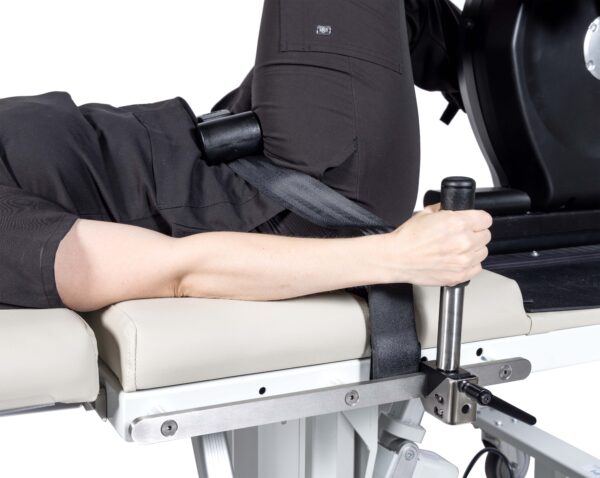

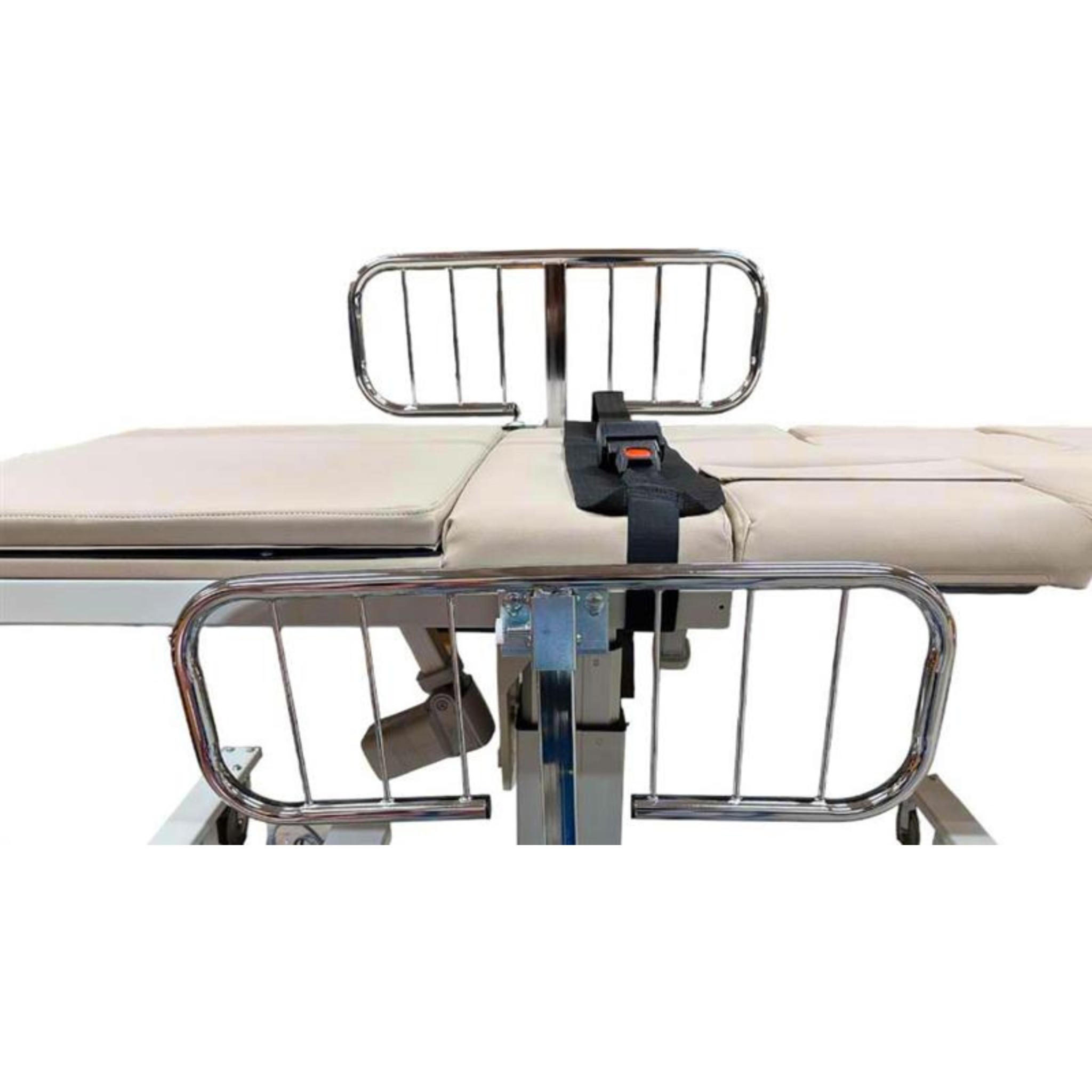

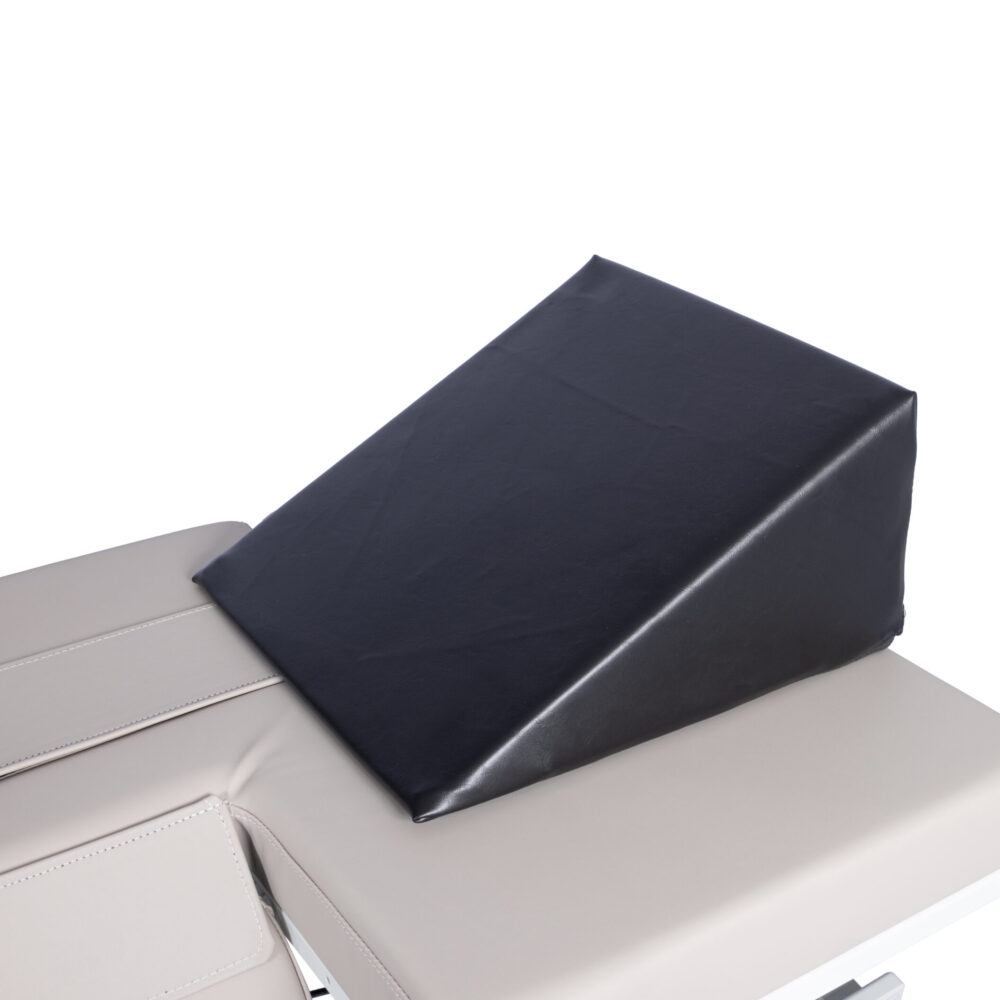

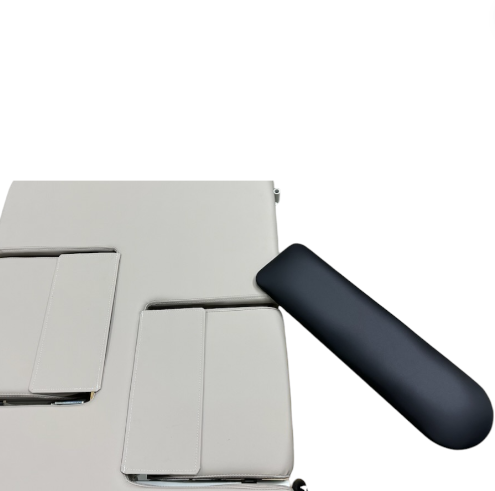

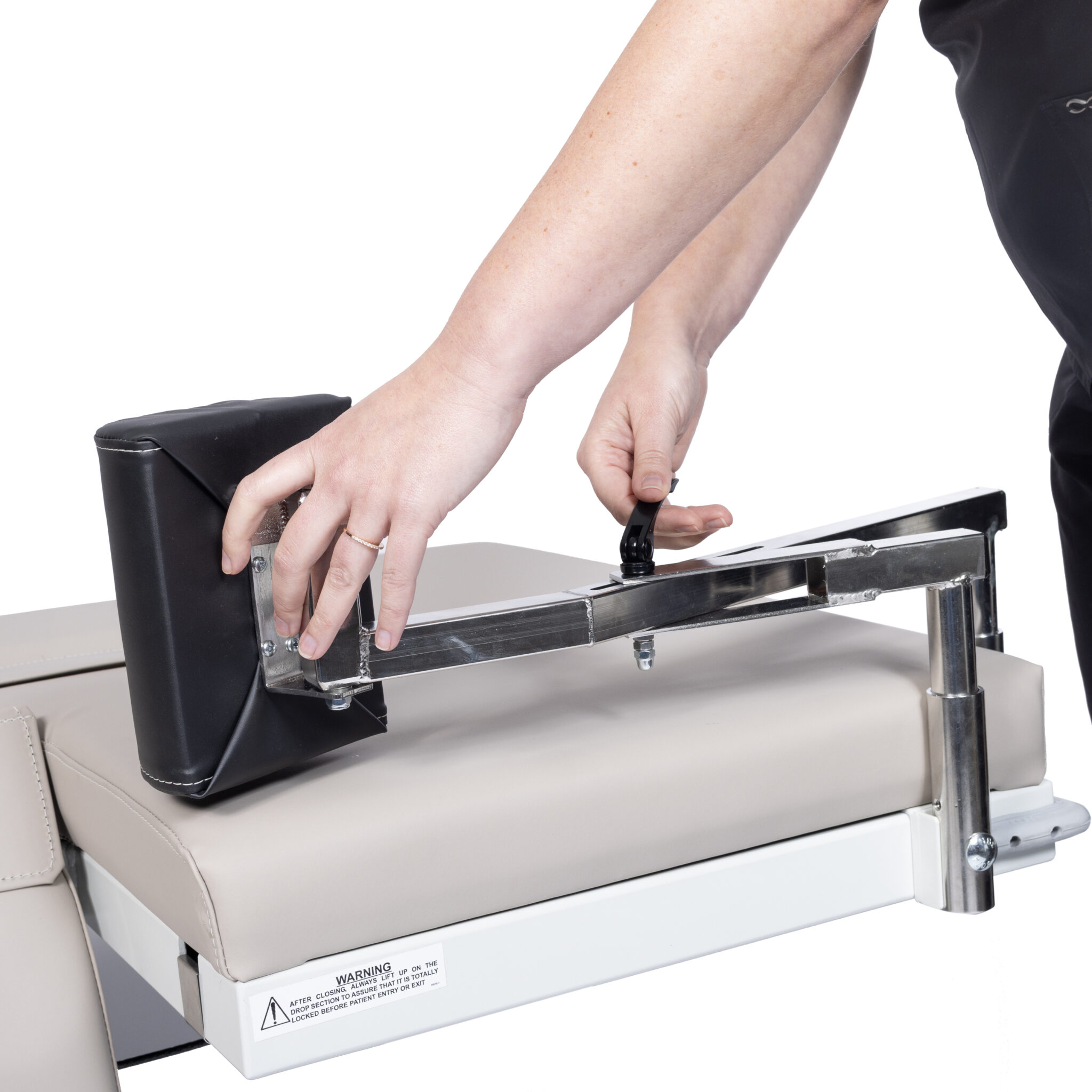

Optional features of our Stress EchoBed® may be pictured
Our Stress EchoBed® is designed for:
• Non-Invasive Cardiologists
• Pulmonologists
• Heart Surgeons
• Sonographers
StressEchoBed® Specification Sheet

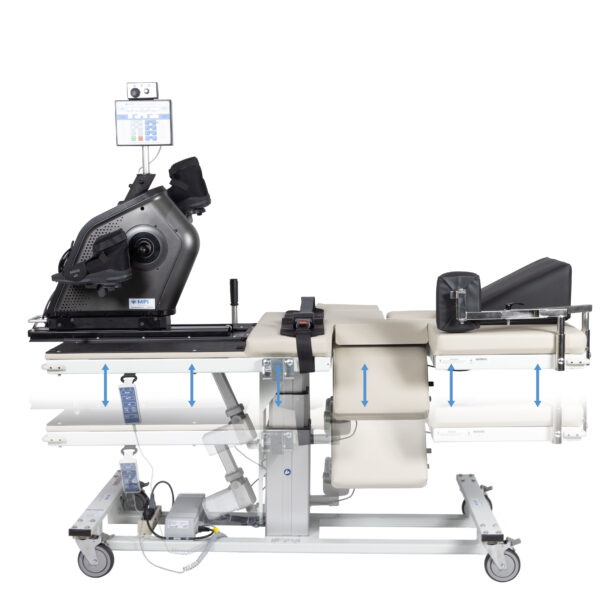

| Height Positioning | 24″ to 34″ |
| Maximum Patient Capacity | 500 lbs. |
| Product Weight | 465 lbs. |

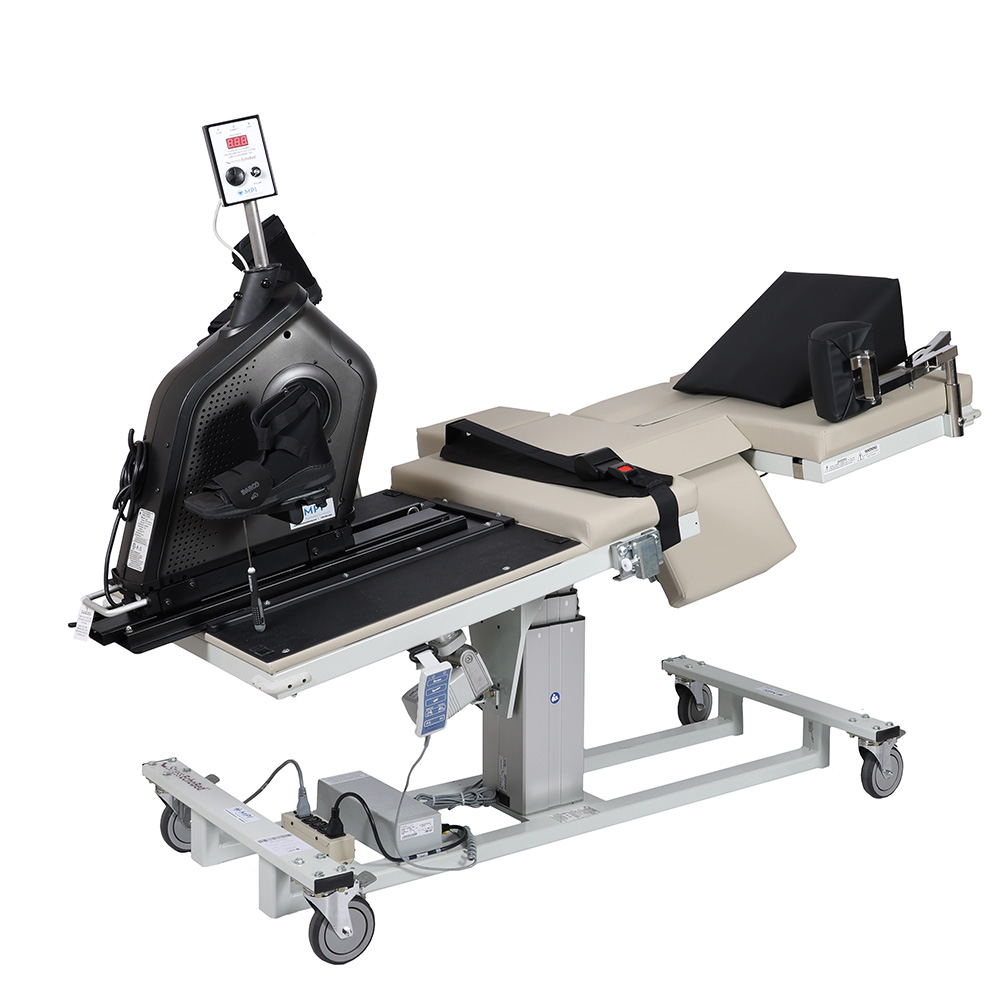

| Trendelenburg/Reverse Trendelenburg Positioning | 15°/15° |
| Lateral Tilt Positioning | 40° |
| Patient Surface Width | 30″ |
| Patient Surface Length | 78″ |
| Warranty | 5 Years |
| Foam | California Technical Bulletin 117 – Section E |
| Electrical | 120 VAC, 50/60 Hz, 2.6A Max |
| Vinyl | California T.B. 117-2013, NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I |
Compare Echocardiography Tables Features
| EchoBed® X | Stress EchoBed® | VasScan Table™ X | EchoTable™ | HUT™ Tilt Table | RR HUT™ Tilt Table | UltraScan® Versa™ Table | UltraScan® Versa™ Premier Table | |
| Height Positioning | 19″ to 38″ | 24″ to 34″ | 19″ to 38″ | 24″ to 34″ | 31″ to 39″ | 31″ to 39″ | 22″ to 38″ | 22″ to 38″ |
| Fowler Positioning | Optional – 0° – 65° | N/A | 0° – 65° | Optional – 0° – 65° | N/A | N/A | 0° – 90° | 0 ° – 90° |
| Trendelenburg/Reverse Trendelenburg Positioning | Optional – 15°/15° | 15°/15° | 15°/30° | Optional – 15°/15° | 15°/90° | 15°/90° | Optional – 15°/15° or 15°/25° | 15/25° |
| Lateral Tilt Positioning | N/A | 40° | N/A | N/A | N/A | N/A | N/A | N/A |
| Maximum Patient Capacity | 600 lbs. | 500 lbs. | 600 lbs. | 500 lbs. | 400 lbs. | 600 lbs. | 500 lbs. | 500 lbs. |
| Width | 30″ | 30″ | 28″ | 28″ | 30″ | 30″ | 28.5″ | 28.5″ |
| Length | 80.5″ | 78″ | 80.5″ | 79.5″ | 73″ | 73″ | 72.5″ | 72.5″ |
| Warranty | 5 Years | 5 Years | 2 Years | 3 Years | 1 Year | 3 Years | 2 Years | 5 Years |
| Foam | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | California Technical Bulletin 117 – Section E | TB 117-2013 Section E | TB 117-2013 Section E |
| Electrical | 100-240VAC 50/60Hz 5A | 120 VAC, 50/60 Hz, 2.6A Max | 100-240VAC, 50/60Hz 5A | 100-240VAC, 50/60Hz 5A | 120 VAC, 60Hz, 6.5A, 230 VAC, 50 Hz, 3.4A | 120 VAC, 60Hz, 6.5A, 230 VAC, 50 Hz, 3.4A | 100 – 240 VAC, 50/60 Hz, 4.5A Max | 100 – 240 VAC,50/60 Hz,4.5A Max |
| Vinyl | California T.B. 117-2013 NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | California T.B. 117-2013, NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | California T.B., 117-2013, NFPA 260- Cover, Fabric – Class I UFAC, Fabric – Class I | California T.B. 117-2013, NFPA 260 – Cover, Fabric – Class 1, UFAC Fabric – Class 1 | California T.B. 117-2013, NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | California T.B. 117-2013, NFPA 260- Cover, Fabric – Class I, UFAC Fabric – Class I | TB 117-2013, NFPA 260 Cover Fabric – Class 1, UFAC Fabric – Class 1 | TB 117-2013, NFPA 260 Cover Fabric – Class 1, UFAC Fabric – Class 1 |
